Xerox WorkCentre 5020 - REP 11.7.1 STM no Paper Sensor

July, 2007
4-94
WorkCentre 5020
REP 11.7.1
Initial Issue
Repairs and Adjustments
REP 11.7.1 STM No Paper Sensor
Parts List on PL 11.7
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove Tray 1.
2. Remove Tray 2 (REP 11.1.1).

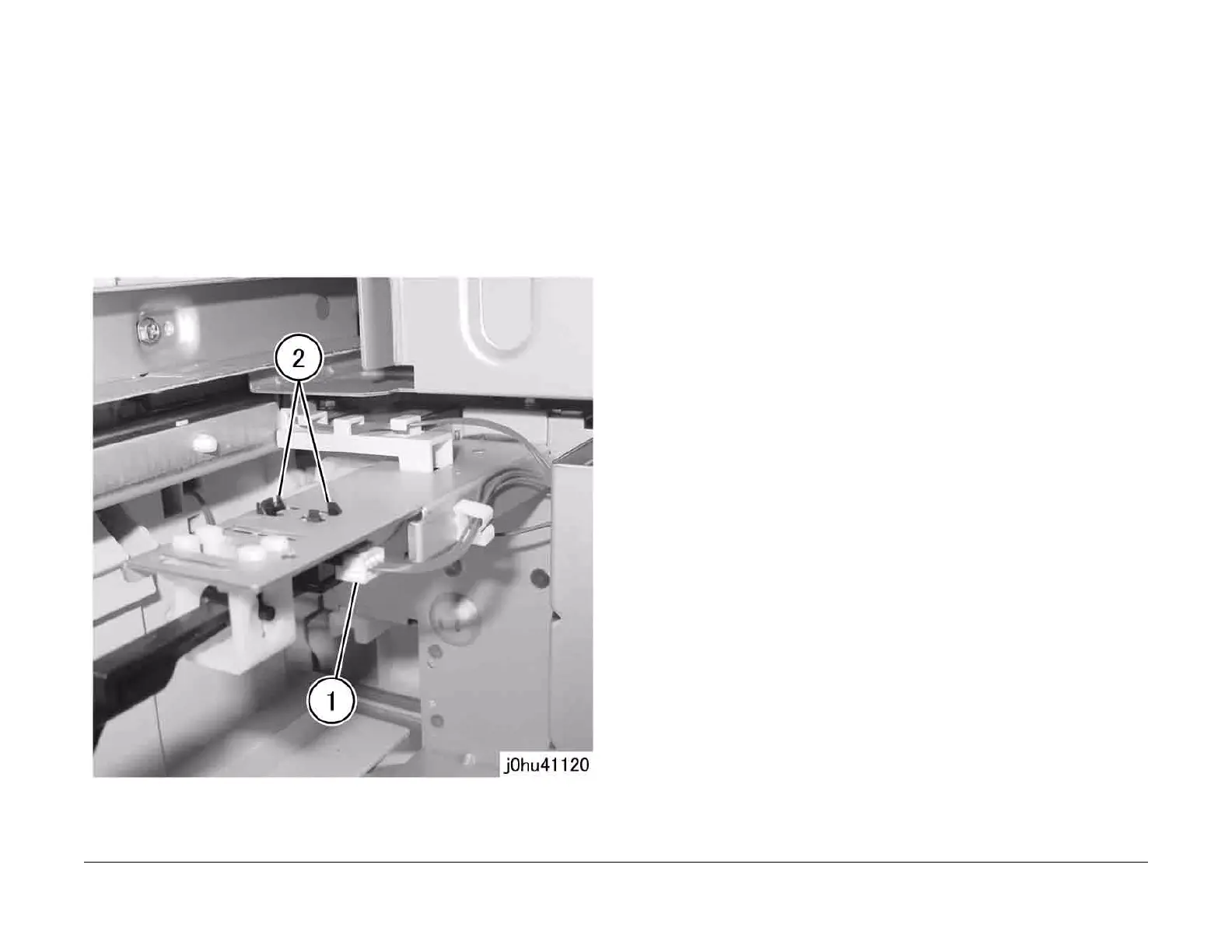

3. Remove the STM No Paper Sensor (Figure 1).
1 Disconnect the connector.
2 Release the tabs, and remove the STM No Paper Sensor.
Figure 1
Replacement
1. To install, do the removal steps in reverse order.
