Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-45
WorkCentre 5020
PL 11.4
Parts List

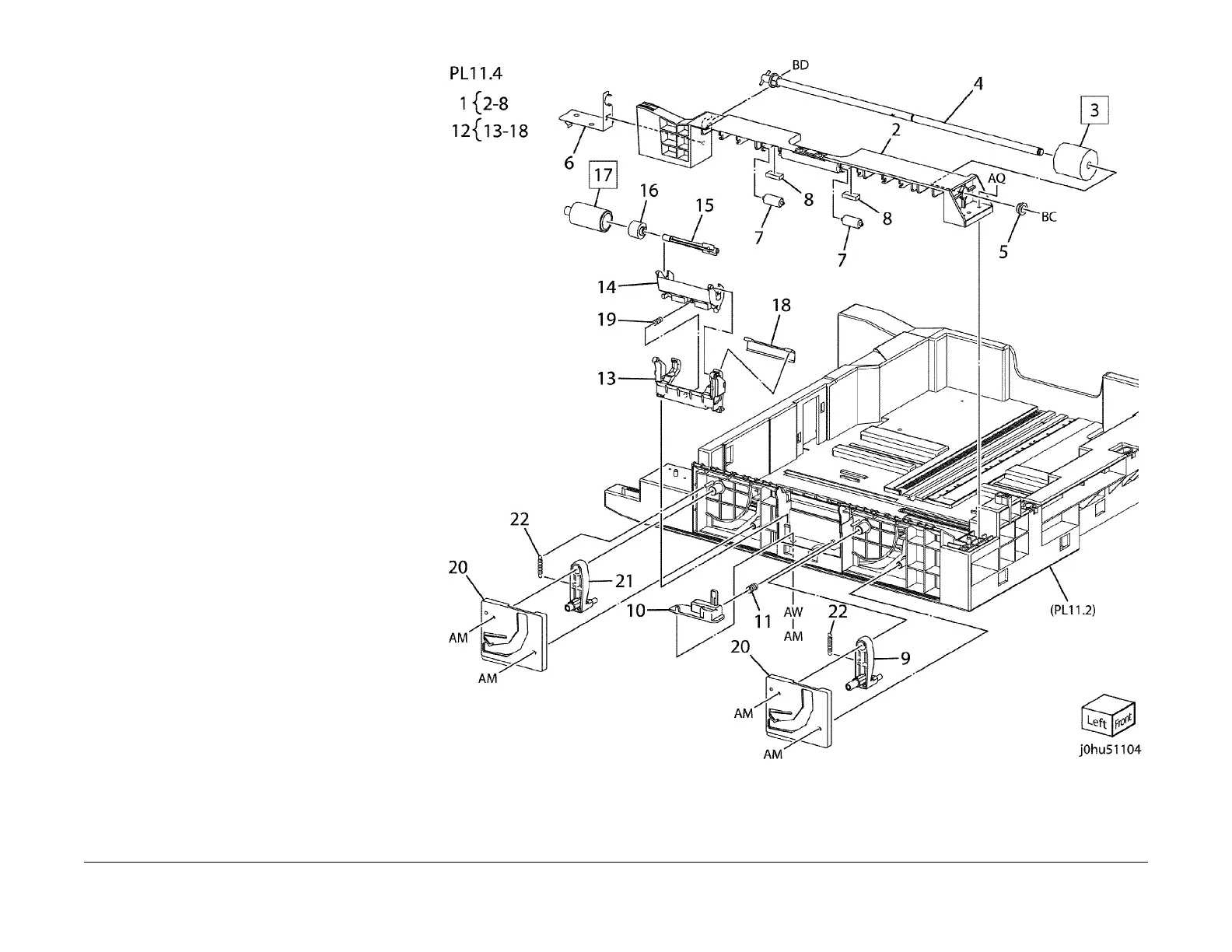

PL 11.4 Tray 2 Component (3 OF 3)
Item Part Description
1 059K48430 Tray 2 Feeder Assembly
2 – Feed Chute (P/O Item 1)
3 059K48660 Tray 2 Feed Roll (REP 11.4.1)
4 – Feed Shaft (P/O Item 1)
5 013E90840 Bearing
6 – Earth Spring (P/O Item 1)
7 – Core Roll (P/O Item 1)
8 – Holder Seal (P/O Item 1)
9 003K15530 Front Latch Assembly
10 – Holder Arm (Not Spared)
11 – Spring (Not Spared)
12 019K09250 Retard Roll Housing
13 – Retard Housing (P/O Item 12)
14 – Retard Holder (P/O Item 12)
15 – Retard Shaft (P/O Item 12)
16 – Friction Clutch (P/O Item 12)
17 – Tray 2 Retard Roll (P/O Item 12)
(REP 11.4.2)
18 – Retard Plate (P/O Item 12)
19 – Retard Spring (P/O PL11.1 Item 1)
20 – Latch Cover (P/O PL11.1 Item 1)
21 003K15540 Rear Latch Assembly
22 – Spring (P/O PL11.1 Item 1)
