Xerox WorkCentre 5020 Service Documentation

July, 2007
4-27
WorkCentre 5020
REP 4.3.1, REP 4.4.1
Repairs and Adjustments
Initial Issue

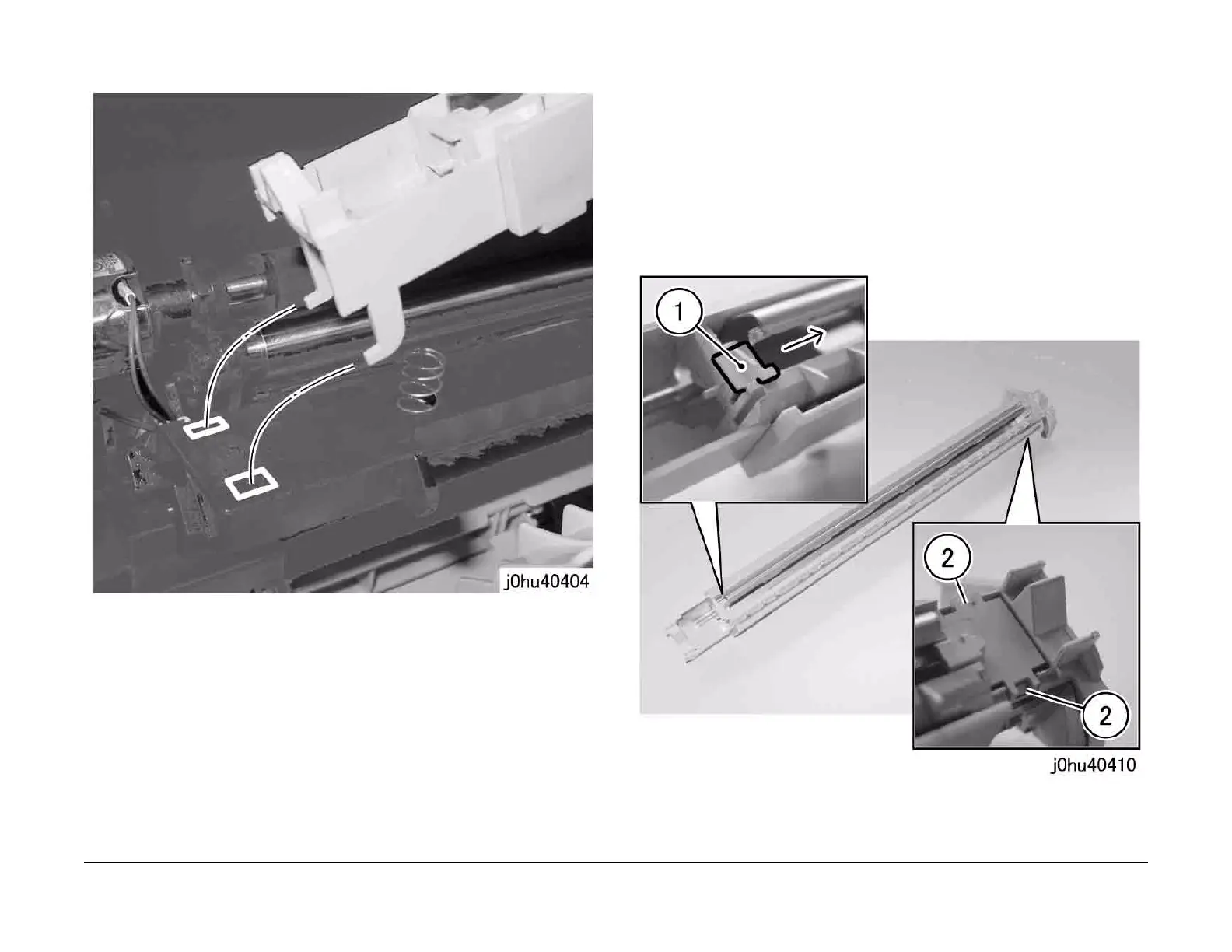

4. When installing the Transfer Corotron Housing, insert the tabs of Transfer Corotron Hous-
ing into the square holes of the Corotron Bracket (Figure 7).
Figure 7
REP 4.4.1 Corotron Wire
Parts List on PL 4.4
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Transfer Corotron Housing (REP 4.3.1).
2. Remove the Drum Cartridge (REP 4.1.1).
3. Remove the Inboard/Outboard Cover (Figure 1).
1 Remove the Inboard Cover in the direction of the arrow.
2 Release the tabs (2) to remove the Outboard Cover.
Figure 1

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
