July, 2007
4-90
WorkCentre 5020
REP 11.5.1
Initial Issue
Repairs and Adjustments
REP 11.5.1 STM Feed Sensor
Parts List on PL 11.5
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the IOT from the Single Tray Module (REP 11.1.2).
2. Remove Tray 2 (REP 11.1.1).
3. Open Access Cover 2.
4. Remove the STM Feed Sensor (Figure 1).
1 Pull out the cable clamp.
2 Disconnect the connector.
3 Release the tabs, and remove the STM Feed Sensor.

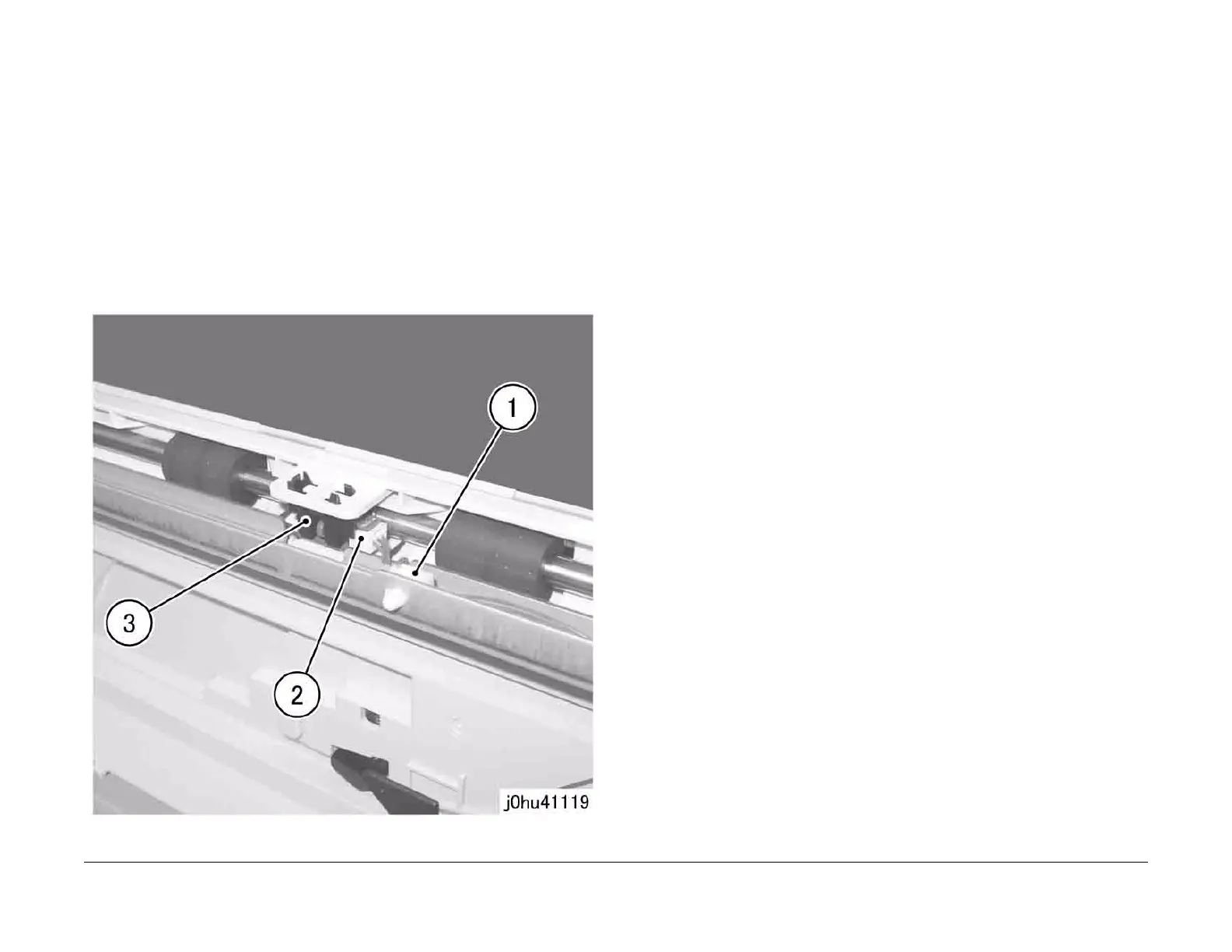

Figure 1
Replacement
1. To install, do the removal steps in reverse order.
