REP 9.2.1 Rear Cover
Parts List on PL 9.2
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
NOTE: After removing the Rear Cover, it is not necessary to save the Data Plate with the
machine serial number. The serial number can also be obtained by opening Left Side Cover
and looking toward the back (bar code label) or by entering Diagnostics. See GP1.

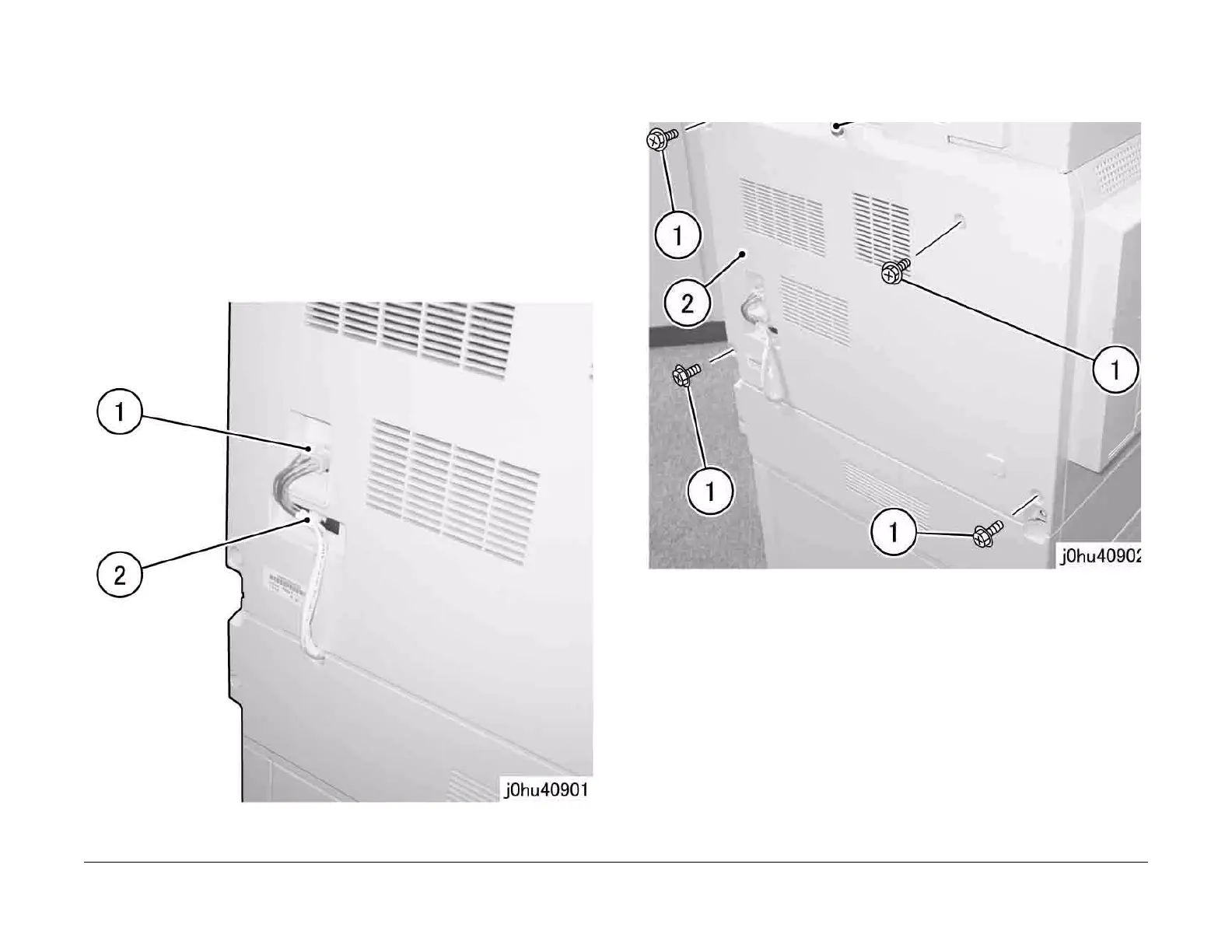

1. Disconnect the connector (Figure 1).
1 Disconnect the connector.
2 Remove the cable band.
Figure 1
2. Remove the Rear Cover (Figure 2).
1 Remove the Tapping Screws (4).
2 Remove the Rear Cover.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
