WorkCentre 5020
PL 2.4
Parts List

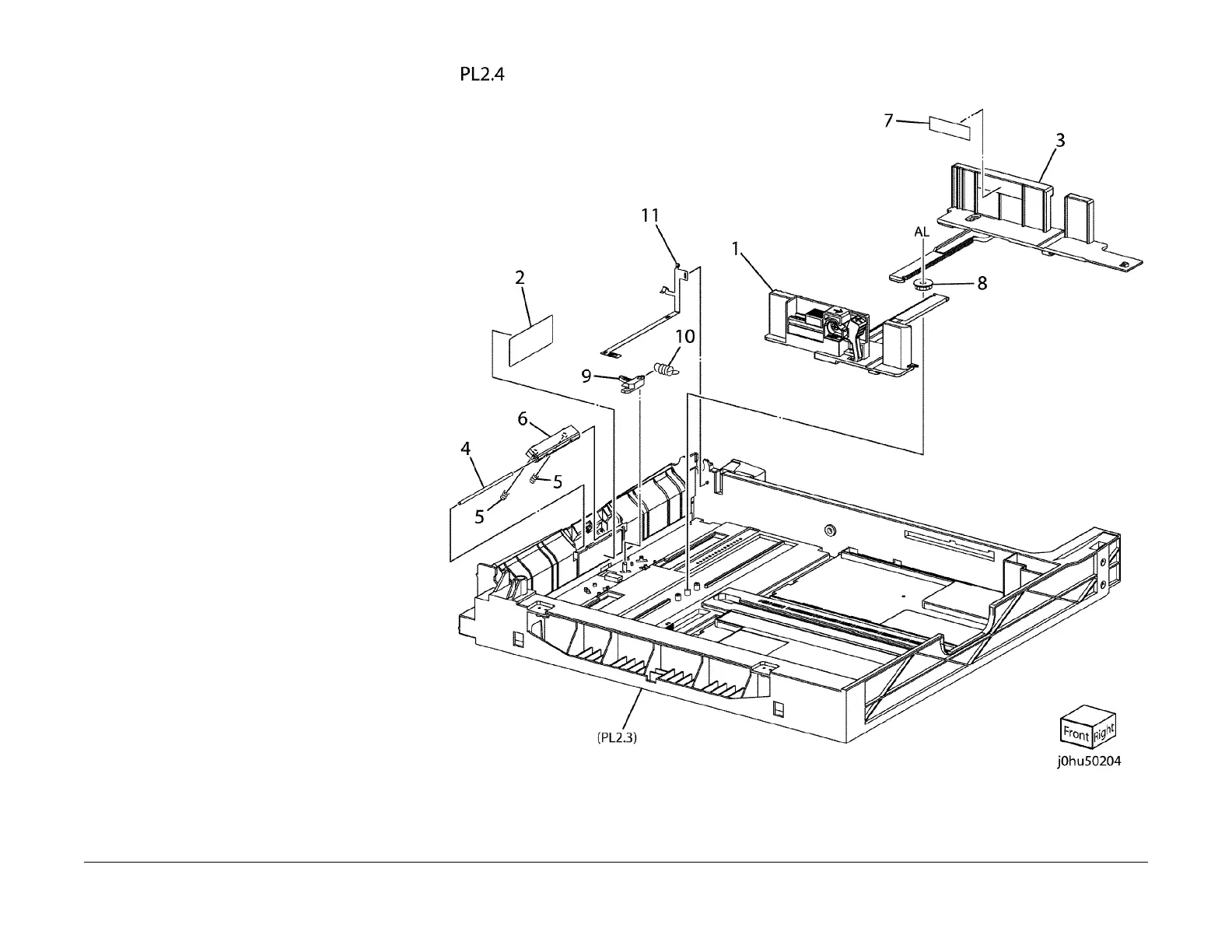

PL 2.4 Tray 1 Components ( 2 OF 2)
Item Part Description
1 Front Side Guide (Not Spared)
2 Paper Guide (Not Spared)
3 Rear Side Guide (Not Spared)
4 Retard Shaft (Not Spared)
5 Pad Spring (Not Spared)
6 019K07086 Retard Pad
7 Label (Max) (Not Spared)
8 Pinion Gear (Not Spared)
9 Bottom Stopper (Not Spared)
10 809E54170 Stopper Spring
11 Earth Plate (Not Spared)
