Xerox WorkCentre 5020 - REP 4.2.1 Toner Empty Sensor

July, 2007
4-20
WorkCentre 5020
REP 4.2.1
Initial Issue
Repairs and Adjustments
REP 4.2.1 Toner Empty Sensor
Parts List on PL 4.2
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Drum Cartridge (REP 4.1.1).
2. Remove Tray 1.
3. Remove Tray 2 (REP 11.1.1).

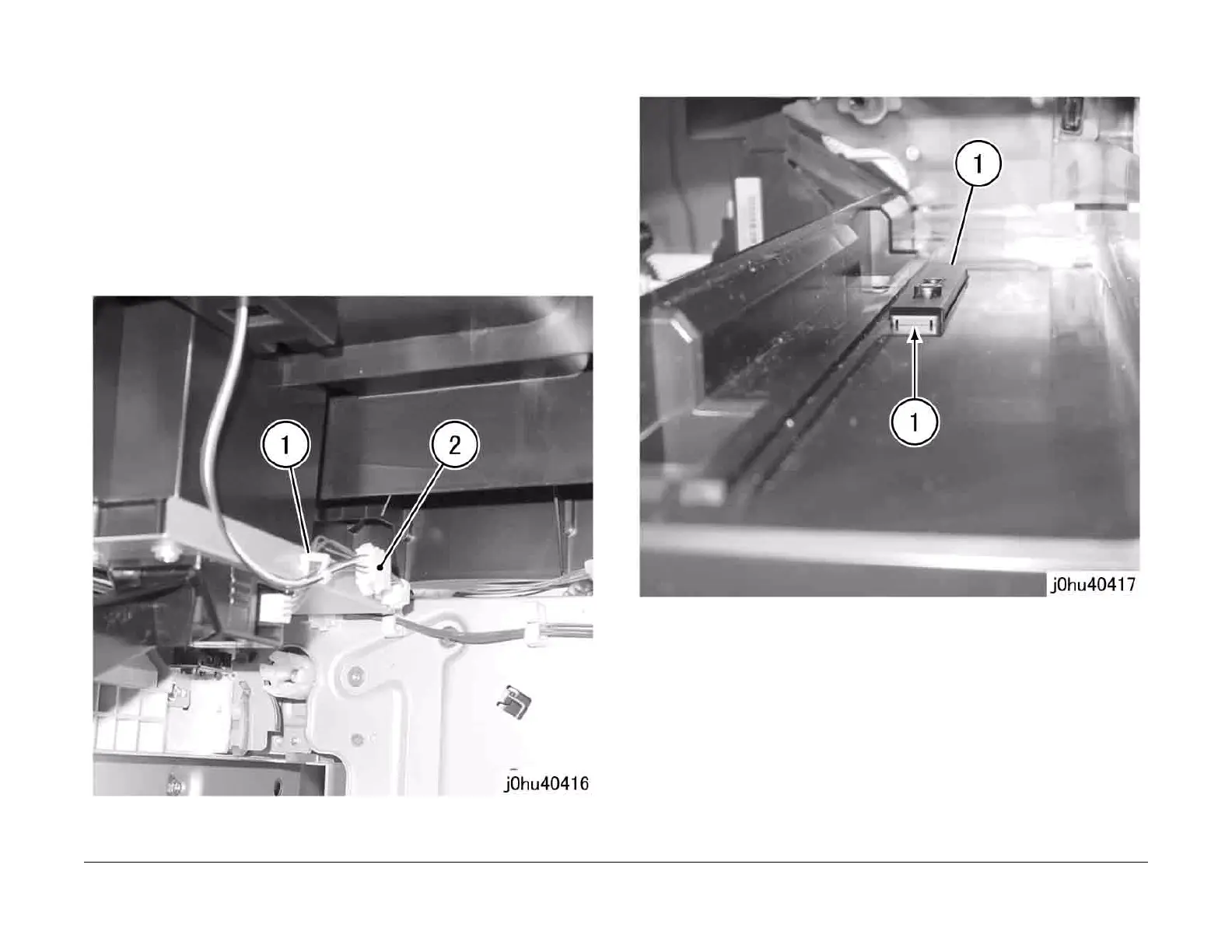

4. Disconnect the connector (Figure 1).
1 Release the wire harness from the clamp.
2 Disconnect the connector.
Figure 1
5. Remove the Toner Empty Sensor (Figure 2).
1 Release the tabs (2) to remove the Toner Empty Sensor.
Figure 2
