Xerox WorkCentre 5020 - REP 9.1.2 Front Left Cover

July, 2007
4-62
WorkCentre 5020
REP 9.1.2
Initial Issue
Repairs and Adjustments
REP 9.1.2 Front Left Cover
Parts List on PL 9.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Open the Front Cover.

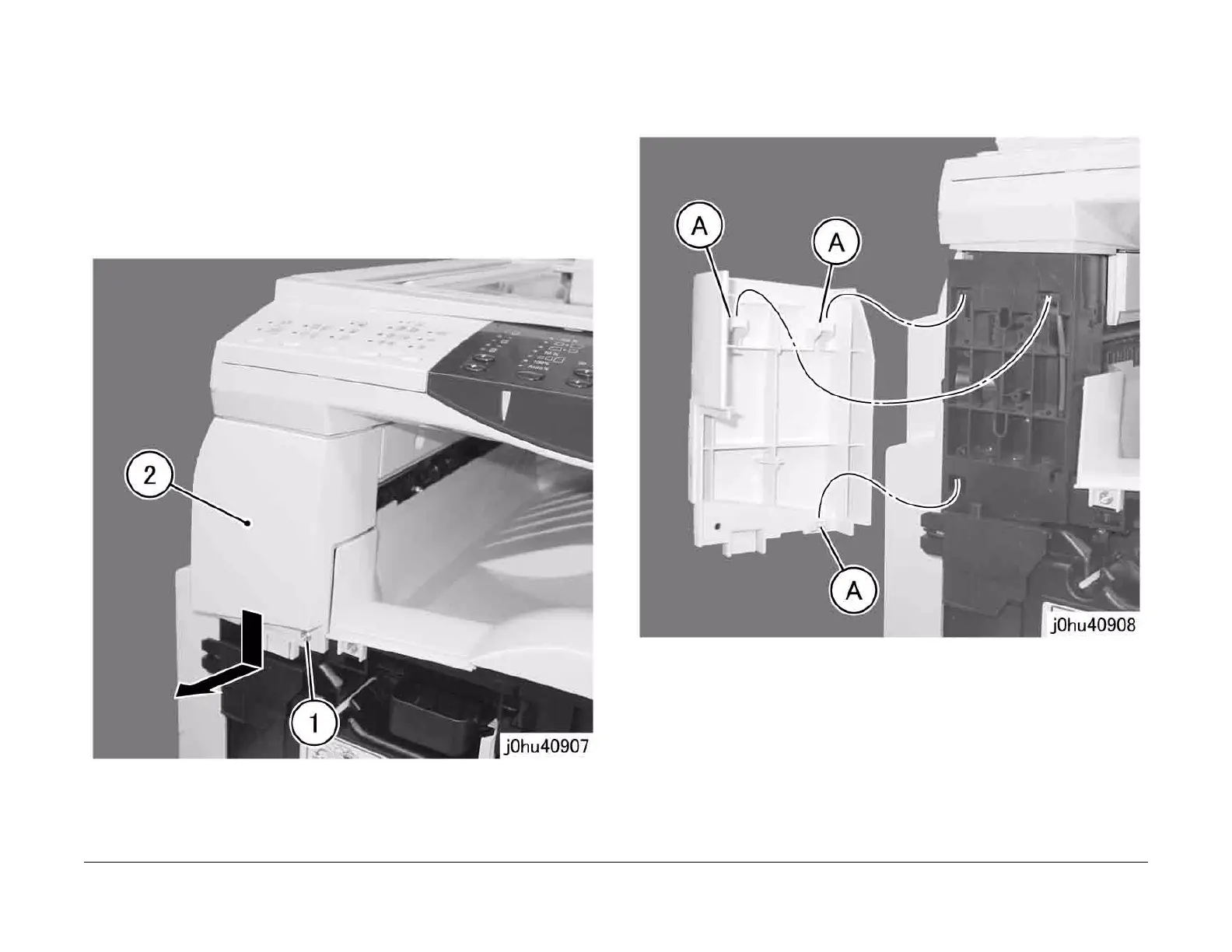

2. Remove the Front Left Cover (Figure 1).
1 Remove the Tapping Screw.
2 Remove the Front Left Cover by pulling in the direction of the arrow.
Figure 1
Replacement
1. To install, do the removal steps in reverse order.
2. When installing the Front Left Cover, attach the hooks (Figure 2).
A Hooks (3)
Figure 2
