07/26/2007
5-38
WorkCentre 5020
PL 10.4
Parts List

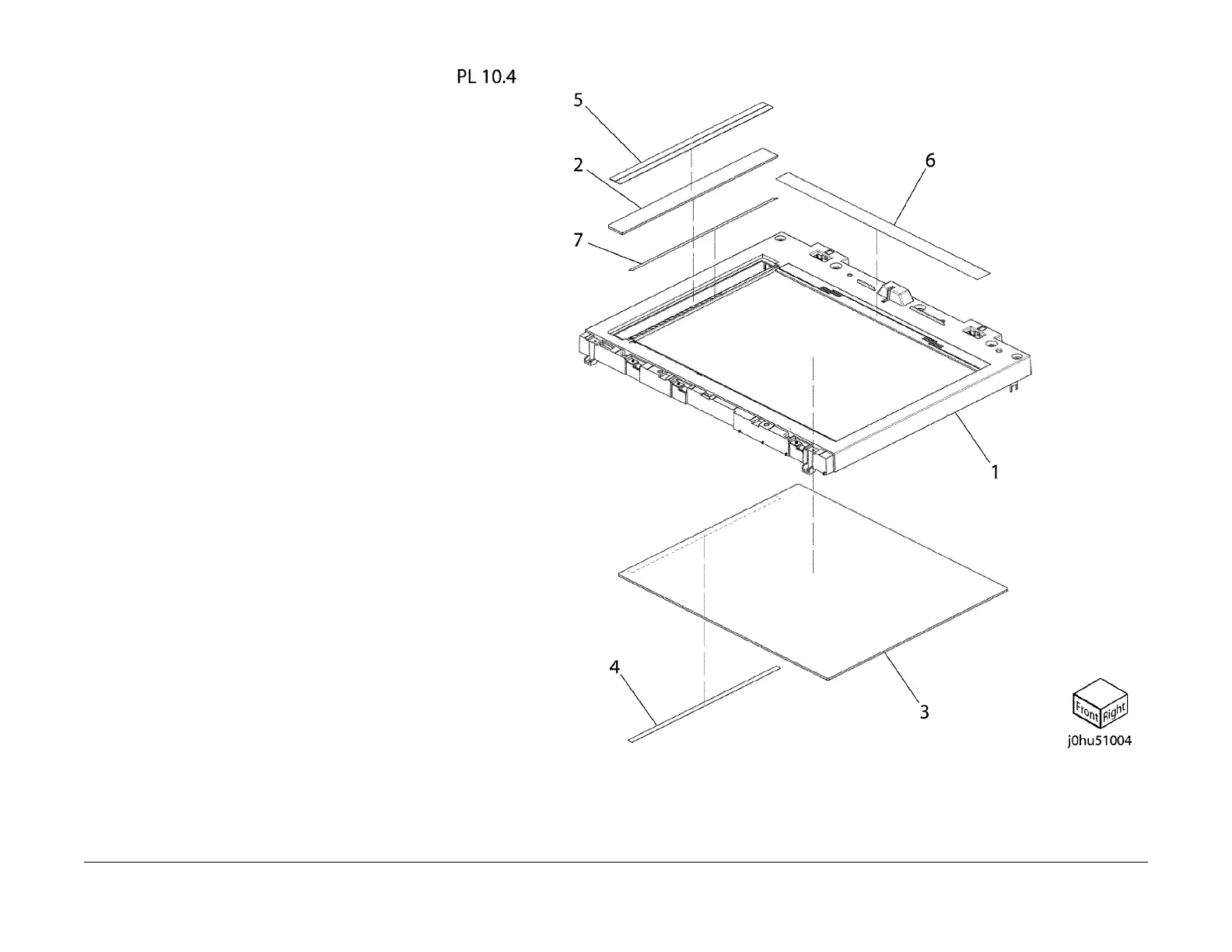

PL 10.4 IIT Upper Cover Cover
Component
Item Part Description
1 848E18960 IIT Upper Cover
2 090E02380 Small Platen Glass
3 090E91720 Platen Glass
4 815E08650 White Referance
5 815E42250 Sheet (Black and White)
6 – Label (Not Spared)
7 – Label (Not Spared)
