Xerox WorkCentre 5020 - PL 7.2 Left Hand Cover Assembly

07/26/2007
5-26
WorkCentre 5020
PL 7.2
Parts List

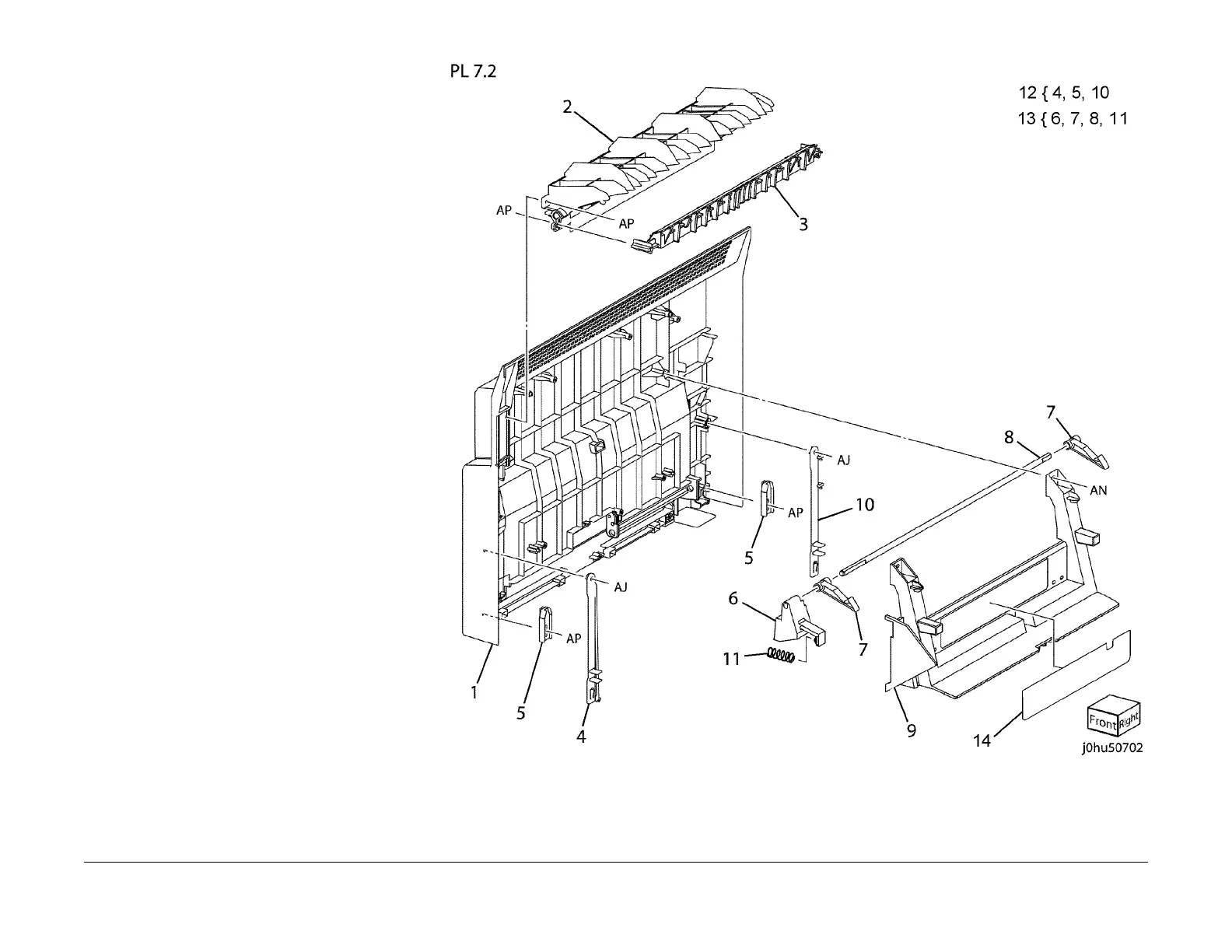

PL 7.2 Left Hand Cover Assembly
Item Part Description
1 – Left Hand Cover (Not Spared)
2 – Left Hand Upper Chute (Not
Spared)
3 – Left Hand Chute (Not Spared)
4 – Front Stopper (P/O Item 12)
5 – Pivot Retainer (P/O Item 12)
6 – Latch Handle (P/O Item 13)
7 – Latch (P/O Item 13)
8 – Latch Shaft (P/O Item 13)
9 – Main Baffle (Not Spared)
10 – Rear Stopper (P/O Item 12)
11 – Latch Spring (P/O Item 13)
12 604K43860 Left Hand Door Kit
13 604K43870 Left Hand Door Latch Kit
14 – Label (Not Spared)
