Xerox WorkCentre 5020 Service Documentation

July, 2007
4-92
WorkCentre 5020
REP 11.6.1
Initial Issue
Repairs and Adjustments
REP 11.6.1 STM Feed Clutch
Parts List on PL 11.6
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the STM Rear Cover (PL 11.5).

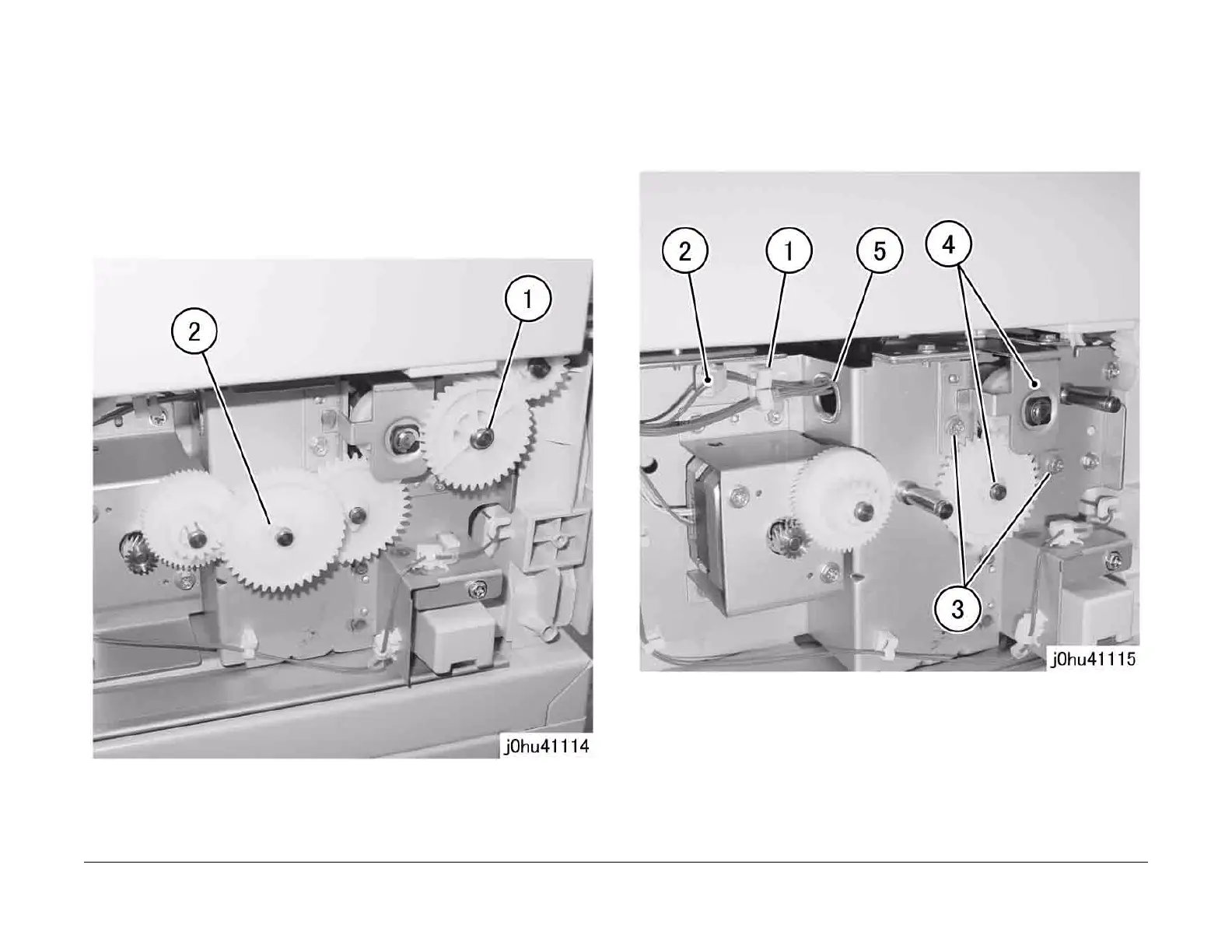

2. Remove the gears (Figure 1).
1 Remove the E-rings.
2 Release the tabs.
Figure 1
3. Remove the STM Feed Clutch (Figure 2).
1 Release the wire harness from the clamp.
2 Disconnect the connector.
3 Remove the screws (2).
4 Release the tab on the gear, and remove the gear together with the STM Feed Clutch.
5 Slide the wire harness through the hole.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
