Xerox WorkCentre 5020 - Rep 11.5.2 Stm Pwb (Scc)

July, 2007
4-91
WorkCentre 5020
REP 11.5.2
Repairs and Adjustments
Initial Issue
REP 11.5.2 STM PWB (SCC)
Parts List on PL 11.5
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the STM Rear Cover (PL 11.5).
2. Remove the STM PWB (Figure 1).
1 Disconnect the connectors (3).
2 Remove the screws (2).
3 Remove the STM PWB.

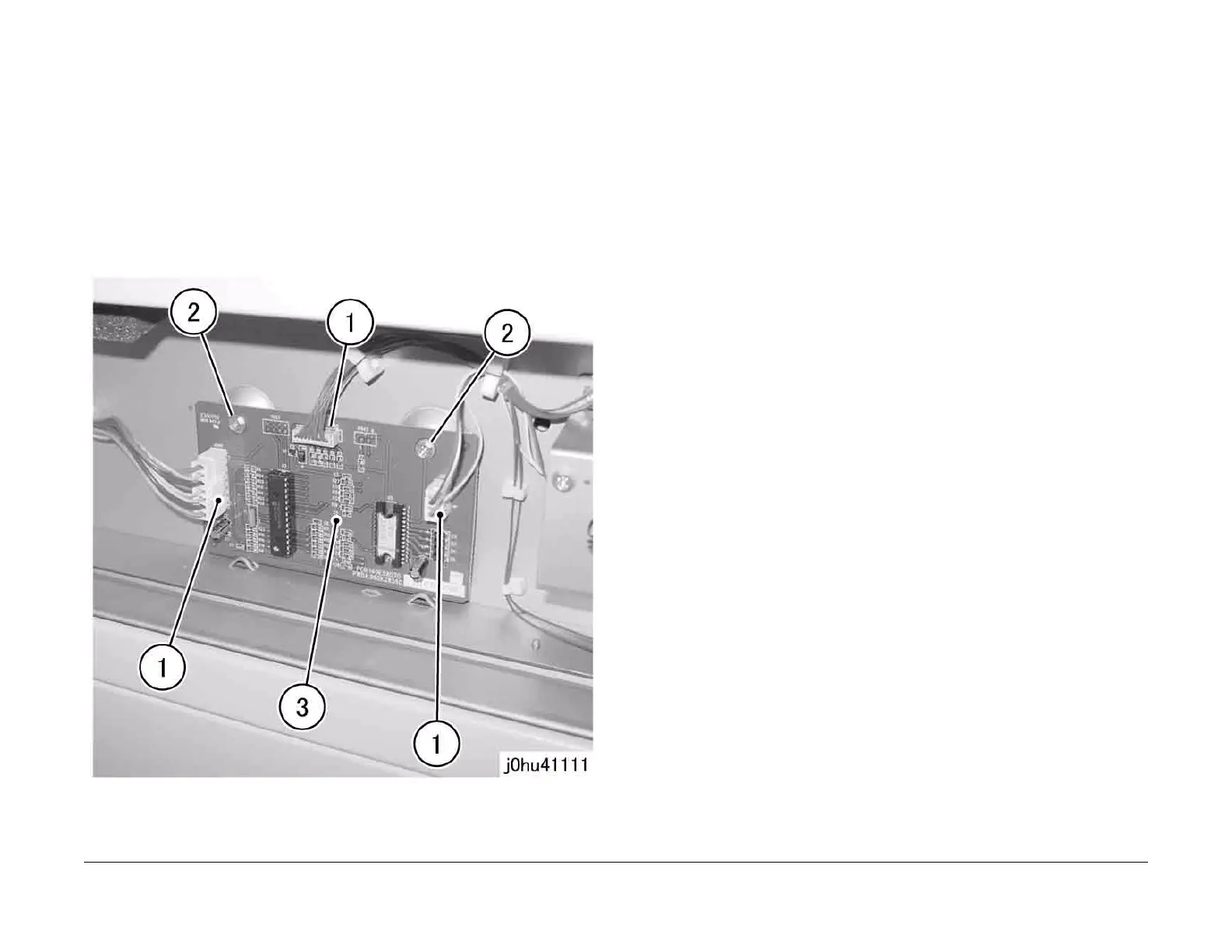

Figure 1
Replacement
1. To install, do the removal steps in reverse order.
