07/26/2007
5-30
WorkCentre 5020
PL 8.2
Parts List

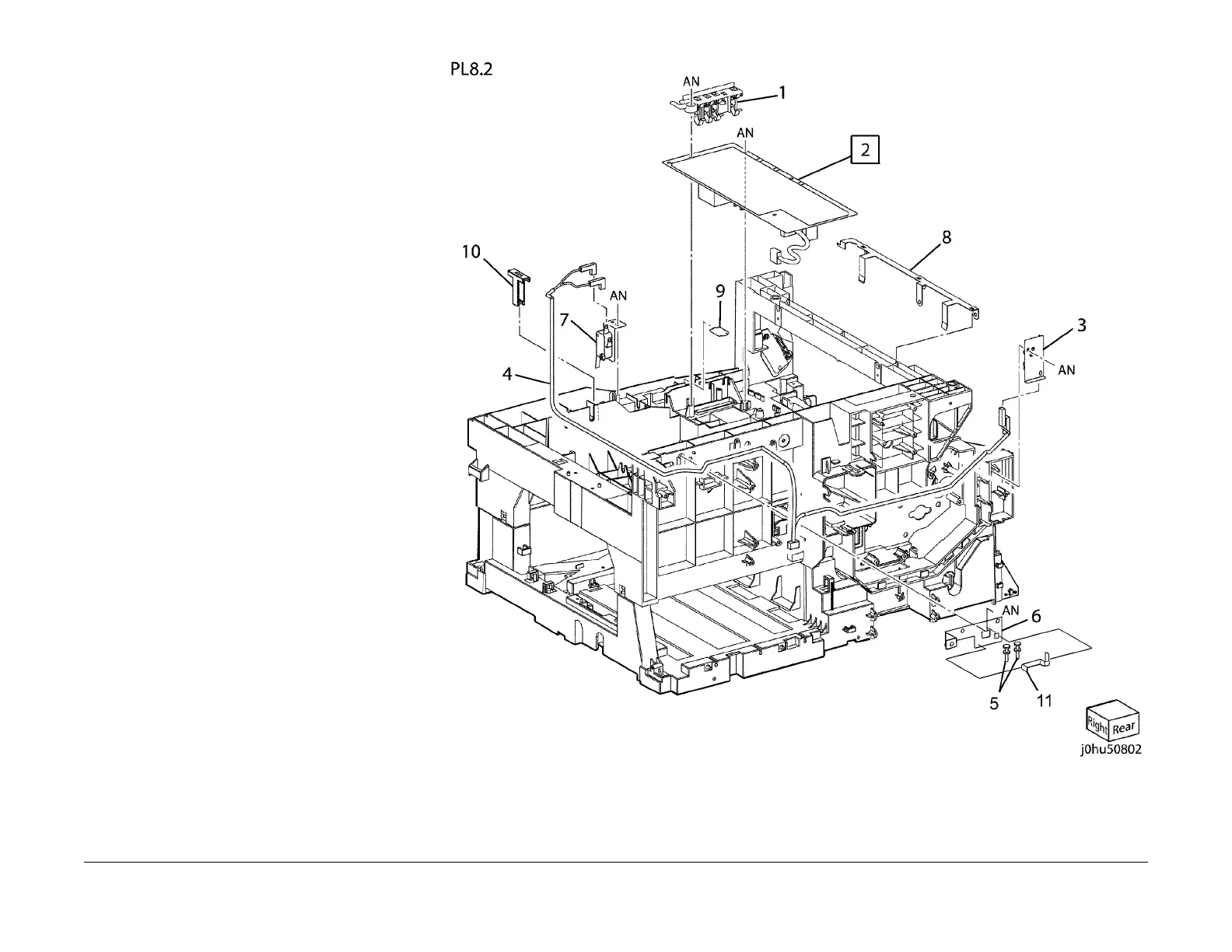

PL 8.2 HVPS, Interlock Switch, Duplex
PWB
Item Part Description
1 014K83141 HV Contact Block
2 105E17401 HVPS (REP 8.2.1)
3 801K25570 Left Hand Interlock Switch
4 Interlock Switch Wire Harness (Not
Spared)
5 Core (Not Spared)
6 Earth Plate (Not Spared)
7 Front Cover Interlock Switch (Not
Spared)
8 Earth Plate (Not Spared)
9 Harness Block (Not Spared)
10 Harness Block (Not Spared)
11 Core Clip (Not Spared)
