07/26/2007
5-34
WorkCentre 5020
PL 9.2
Parts List

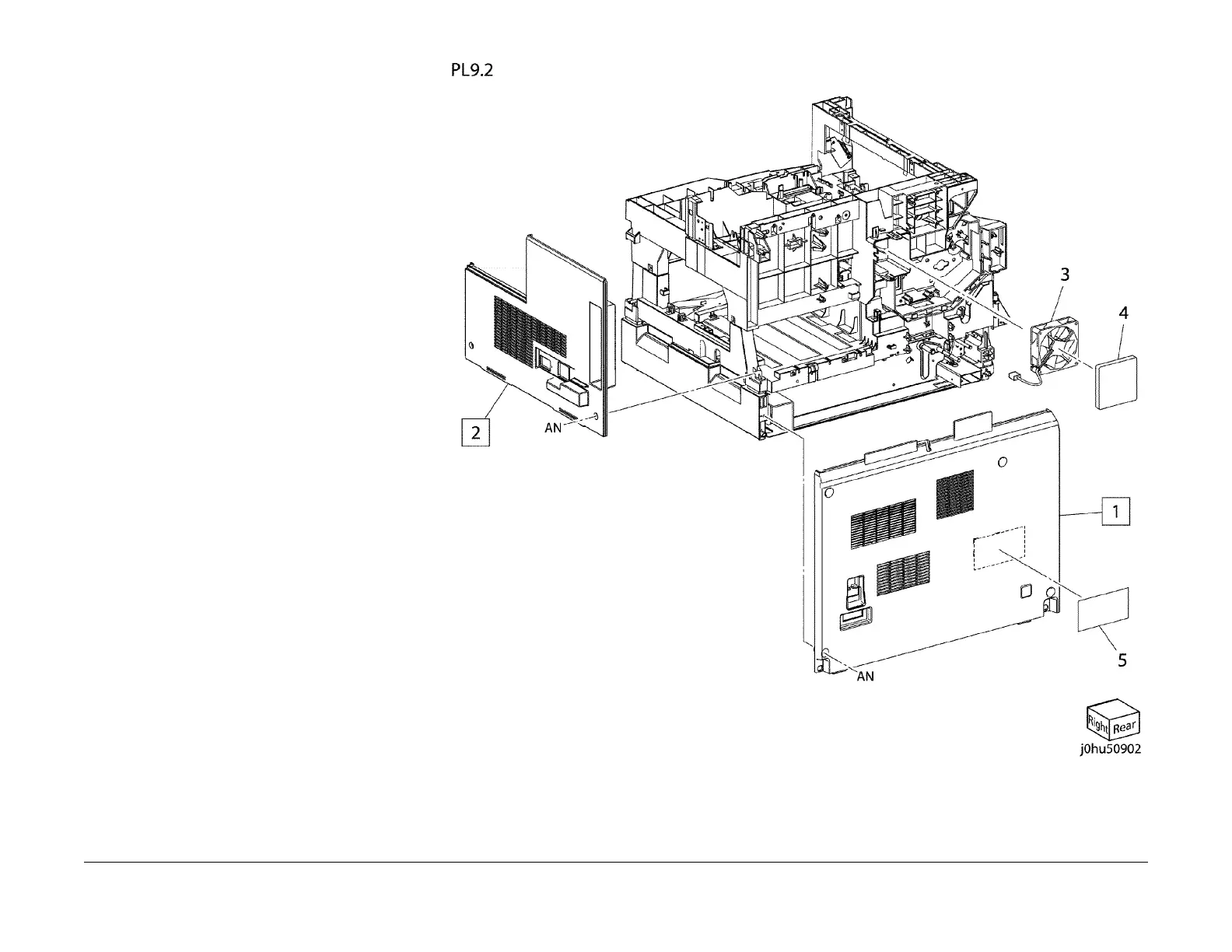

PL 9.2 Rear / Right Cover and NOHAD
Fan
Item Part Description
1 848E04501 Rear Cover (Remove Data Plate
and Place on New Rear Cover)
(REP 9.2.1)
2 848E04451 Right Cover (REP 9.2.2)
3 127K51631 NOHAD Fan
4 053E93650 Ozone Filter
5 Data Plate (Not Spared) (Remove
Data Plate and Place on New Rear
Cover)
