Xerox WorkCentre 5020 Service Documentation

July, 2007
4-66
WorkCentre 5020
REP 10.2.1
Initial Issue
Repairs and Adjustments
REP 10.2.1 IIT Upper Cover (SCC)
Parts List on PL 10.2
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the following parts:
• Platen Cover (PL 10.1)
• Control Panel (REP 8.3.1)

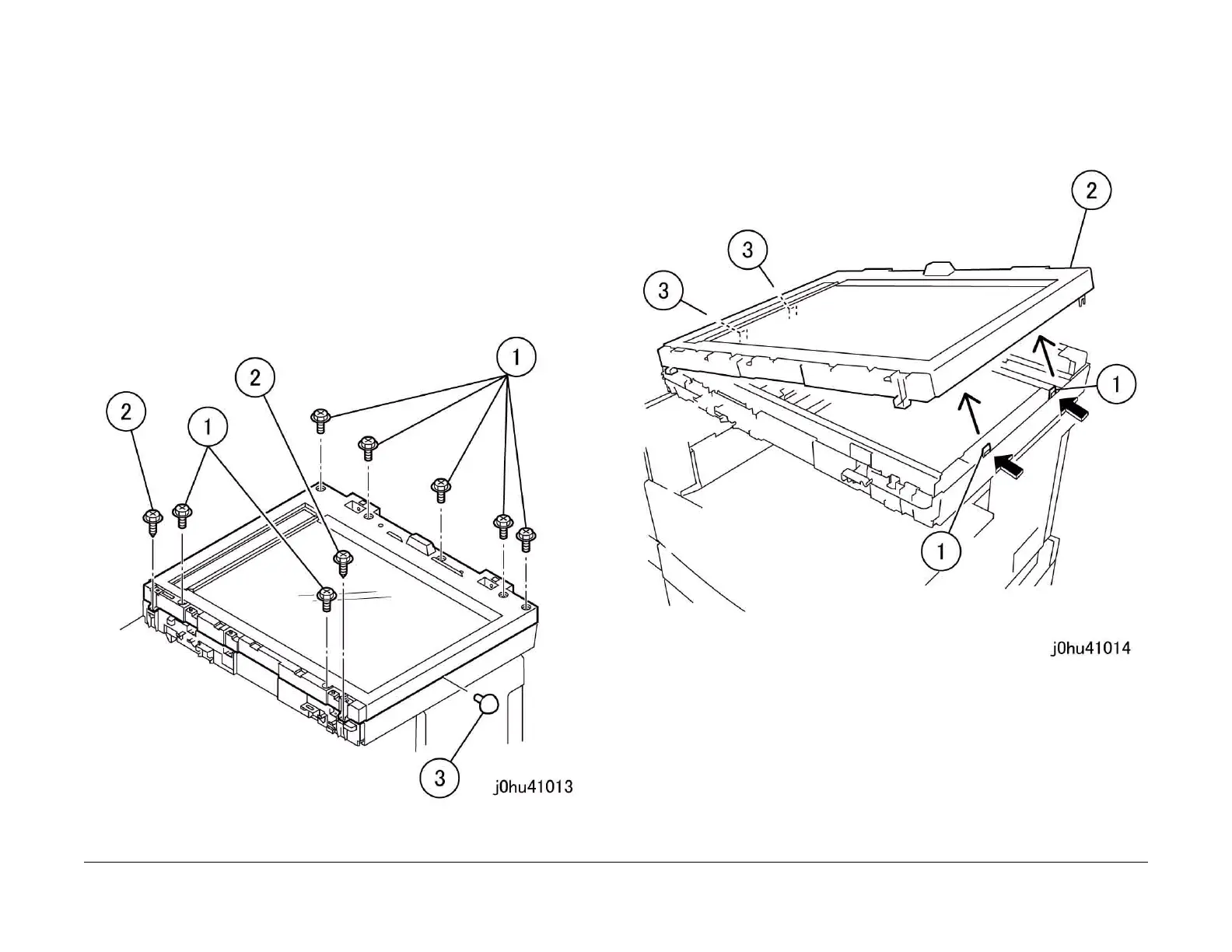

2. Remove the screws that secure the IIT Upper Cover (Figure 1).
1 Remove the screws (7).
2 Remove the Tapping Screws (2).
3 Remove the cap.
Figure 1
3. Remove the IIT Upper Cover (Figure 2).
1 Press the tabs (2) to release them.
NOTE: The tabs are visible through the Platen Glass.
2 Open the right side of the IIT Upper Cover.
3 Press the tabs (2) to release them, and remove the IIT Upper Cover.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
