Xerox WorkCentre 5020 - PL 2.7 no Paper Sensor Housing

07/26/2007
5-14
WorkCentre 5020
PL 2.7
Parts List

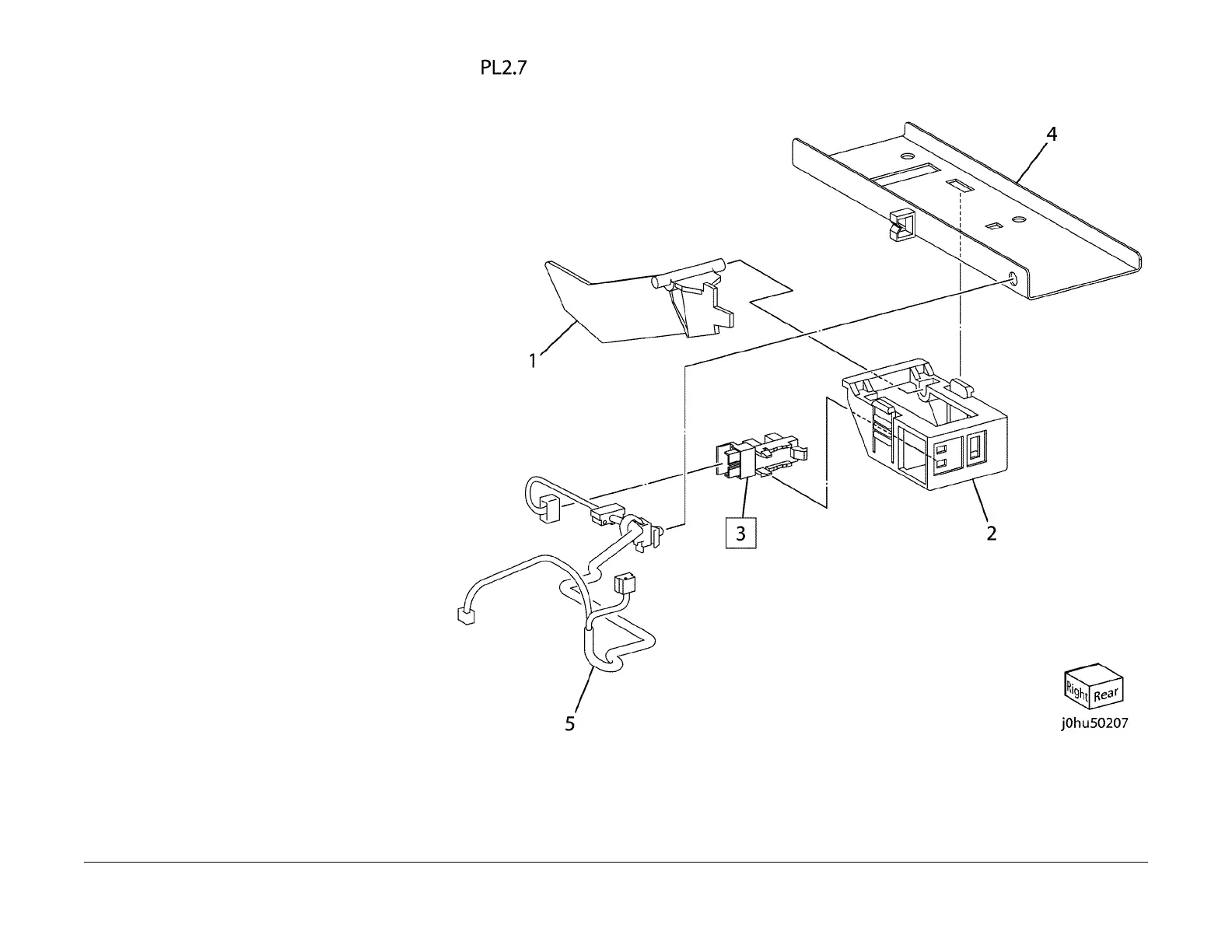

PL 2.7 No Paper Sensor Housing
Item Part Description
1 120E23791 No Paper Actuator
2 – Sensor Housing (Not Spared)
3 130E87090 Tray 1 No Paper Sensor (REP
2.7.1)
4 – Bracket (Not Spared)
5 – Sensor Wire Harness (Not Spared)
