Xerox WorkCentre 5020 - PL 9.1 Front; Top Cover

07/26/2007
5-33
WorkCentre 5020
PL 9.1
Parts List

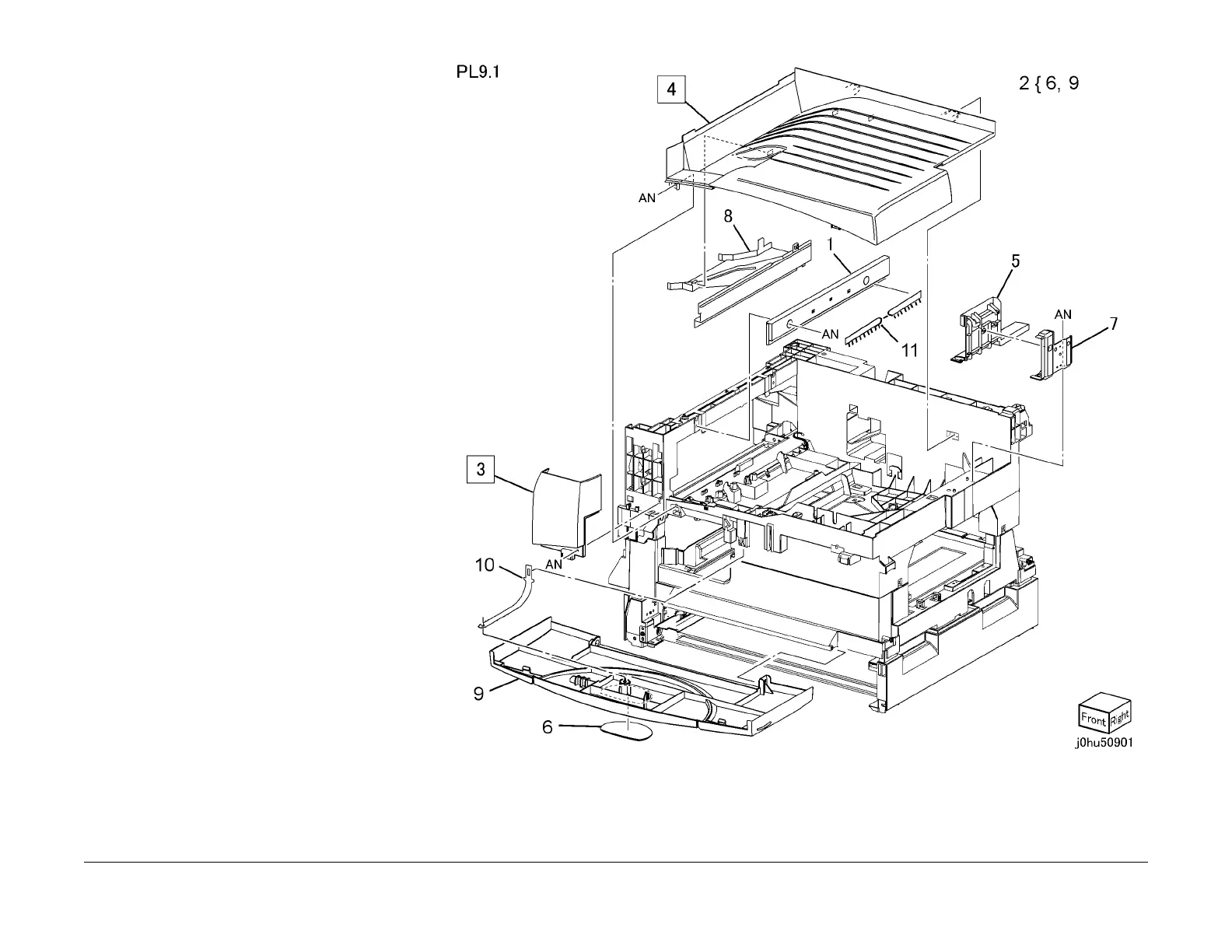

PL 9.1 Front / Top Cover
Item Part Description
1 848E04480 Exit Cover
2 604K46510 Front Cover Plate Kit
3 – Front Left Cover (REP 9.1.2)
4 – Output Tray (Not Spared) (REP
9.1.1)
5 – Right Top Cover (Not Spared)
6 – Xerox Badge Plate (P/O Item 2)
7 – IIT Support Bracket (Not Spared)
8 – Duct (Not Spared)
9 848E04511 Front Cover
10 801E04660 Strap
11 105E12210 Static Eliminator
