Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-41
WorkCentre 5020
PL 10.7
Parts List

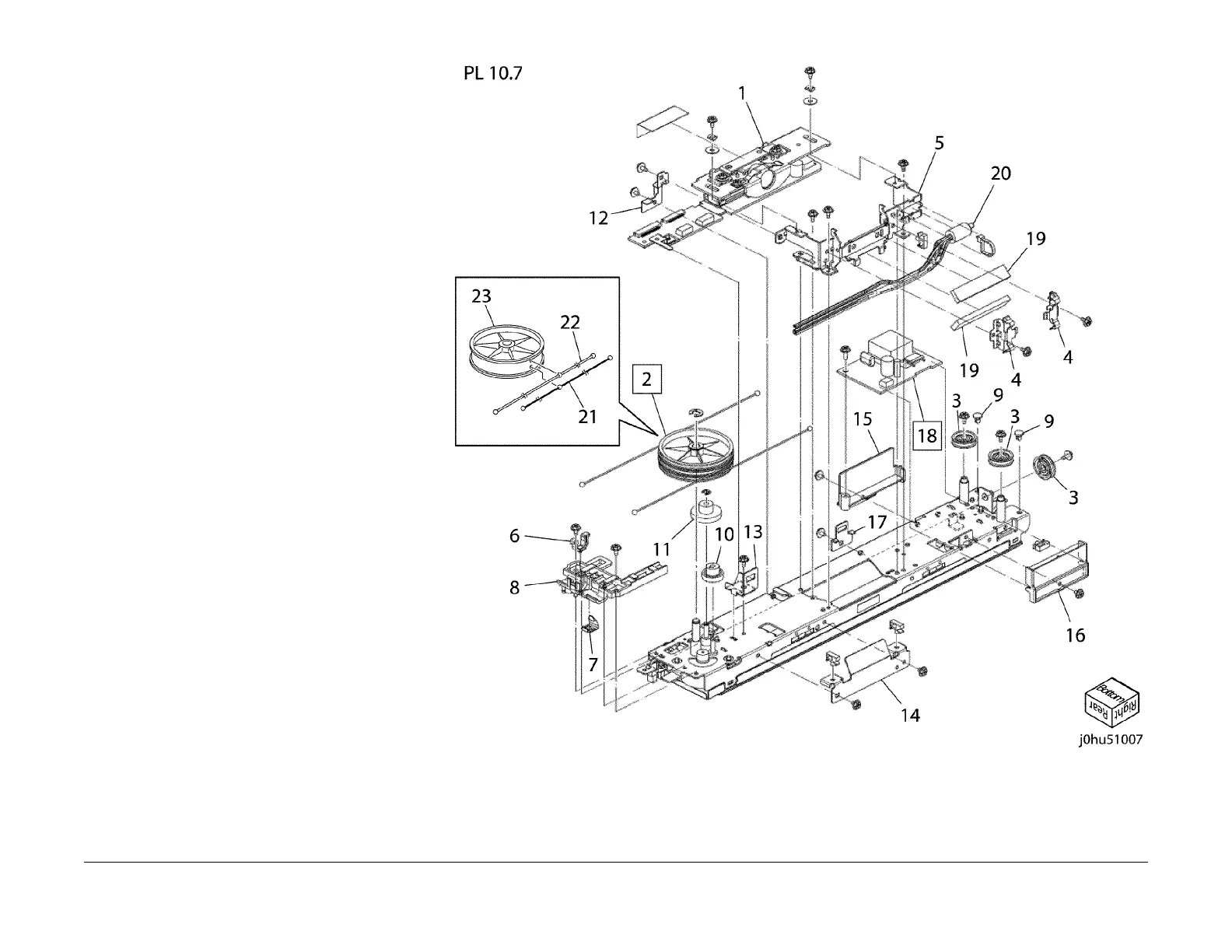

PL 10.7 Center Plate Component
Item Part Description
1 – Len Assembly (P/O PL10.3 Item 1)
2 – Drum and Carriage Cable (P/O
PL10.3 Item 1) (ACO) (REP 10.7.1)
3 – Pulley (P/O PL10.3 Item 1)
4 – Mirror Clip (P/O PL10.3 Item 1)
5 – Mirror Frame (P/O PL10.3 Item 1)
6 – Side Slider (P/O PL10.3 Item 1)
7 – Rail Contact (P/O PL10.3 Item 1)
8 – Rail Slider (P/O PL10.3 Item 1)
9 – Front Slider (P/O PL10.3 Item 1)
10 – Gear (P/O PL10.3 Item 1)
11 – Gear (P/O PL10.3 Item 1)
12 – Mirror Frame Bracket (P/O PL10.3
Item 1)
13 – CCD Support (P/O PL10.3 Item 1)
14 – Lock Plate (P/O PL10.3 Item 1)
15 – Inverter PWB Bracket 1 (P/O
PL10.3 Item 1)
16 – Inverter PWB Bracket 2 (Not
Spared)
17 – Bracket (P/O PL10.3 Item 1)
18 140E88751 Inverter PWB (REP 10.7.2)
19 – Mirror 4 (P/O PL10.3 Item 1)
20 – Wire Harness (P/O PL10.3 Item 1)
21 – Carriage Cable (Black) (Not
Spared)
22 – Carriage Cable (Silver) (P/O
PL10.3 Item 1)
23 – Drum (P/O PL10.3 Item 1)
