Xerox WorkCentre 5020 - REP 11.6.2 STM Feed Motor

July, 2007
4-93
WorkCentre 5020
REP 11.6.2
Repairs and Adjustments
Initial Issue
REP 11.6.2 STM Feed Motor
Parts List on PL 11.6
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the STM Rear Cover (PL 11.5).

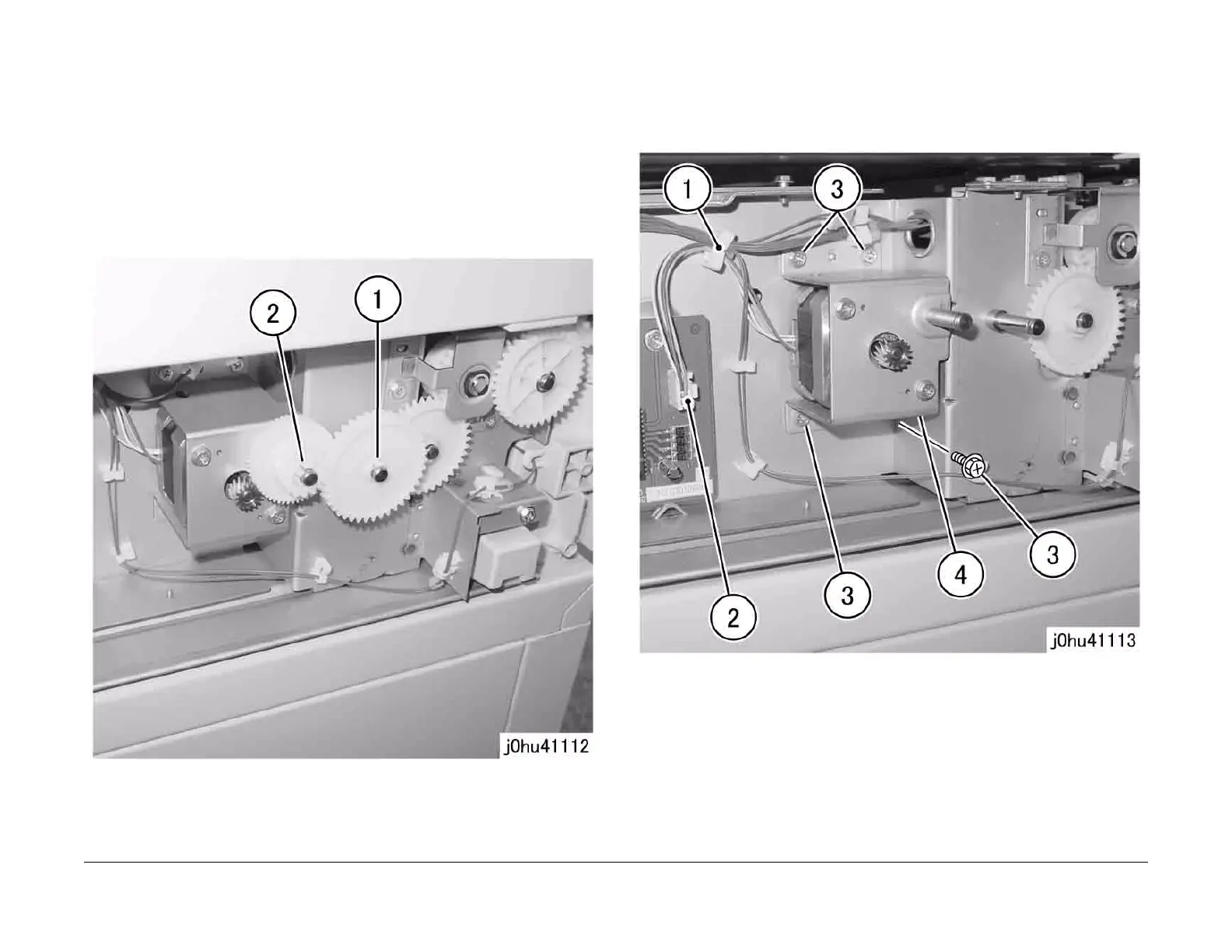

2. Remove the gears (Figure 1).
1 Release the tab, and remove the gear.
2 Release the tab, and remove the gear.
Figure 1
3. Remove the STM Feed Motor (Figure 2).
1 Release the wire harness from the clamp.
2 Disconnect the connector.
3 Remove the screws (4).
4 Remove the STM Feed Motor.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
