Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-49
WorkCentre 5020
PL 12.1
Parts List

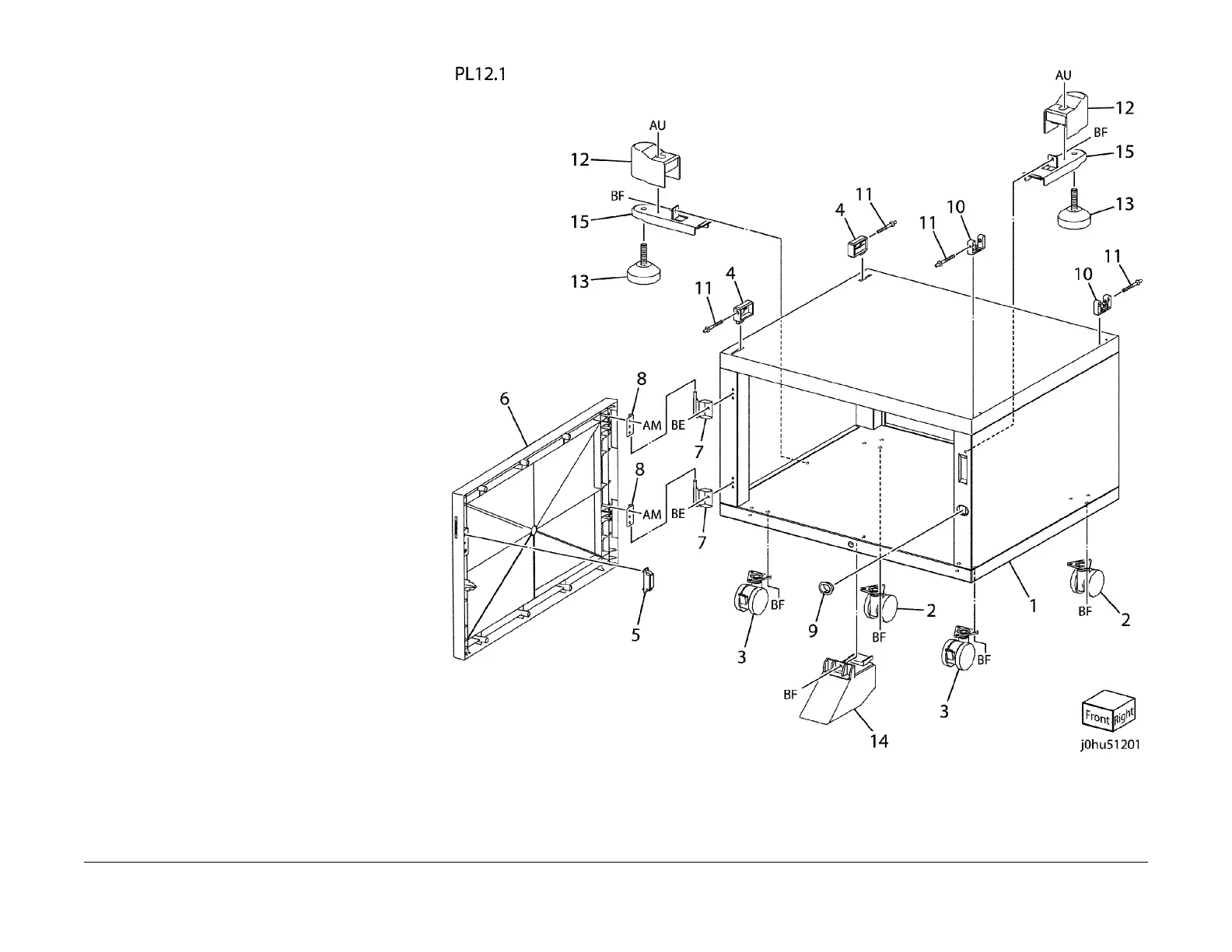

PL 12.1 Stand Component
Item Part Description
1 – Stand (Not Spared)
2 017K93121 Caster
3 017K93132 Caster (With Stopper)
4 017E12010 Locator Peg
5 121E93360 Catch Magnet
6 – Front Door (Not Spared)
7 – Stand Hinge (Not Spared)
8 – Door Hinge (Not Spared)
9 – Guide (Not Spared)
10 017E98760 Support
11 – Screw (Not Spared)
12 – Foot Cover (Not Spared)
13 – Adjuster Foot (Not Spared)
14 – Front Foot (Not Spared)
15 – Foot Bracket (Not Spared)

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
