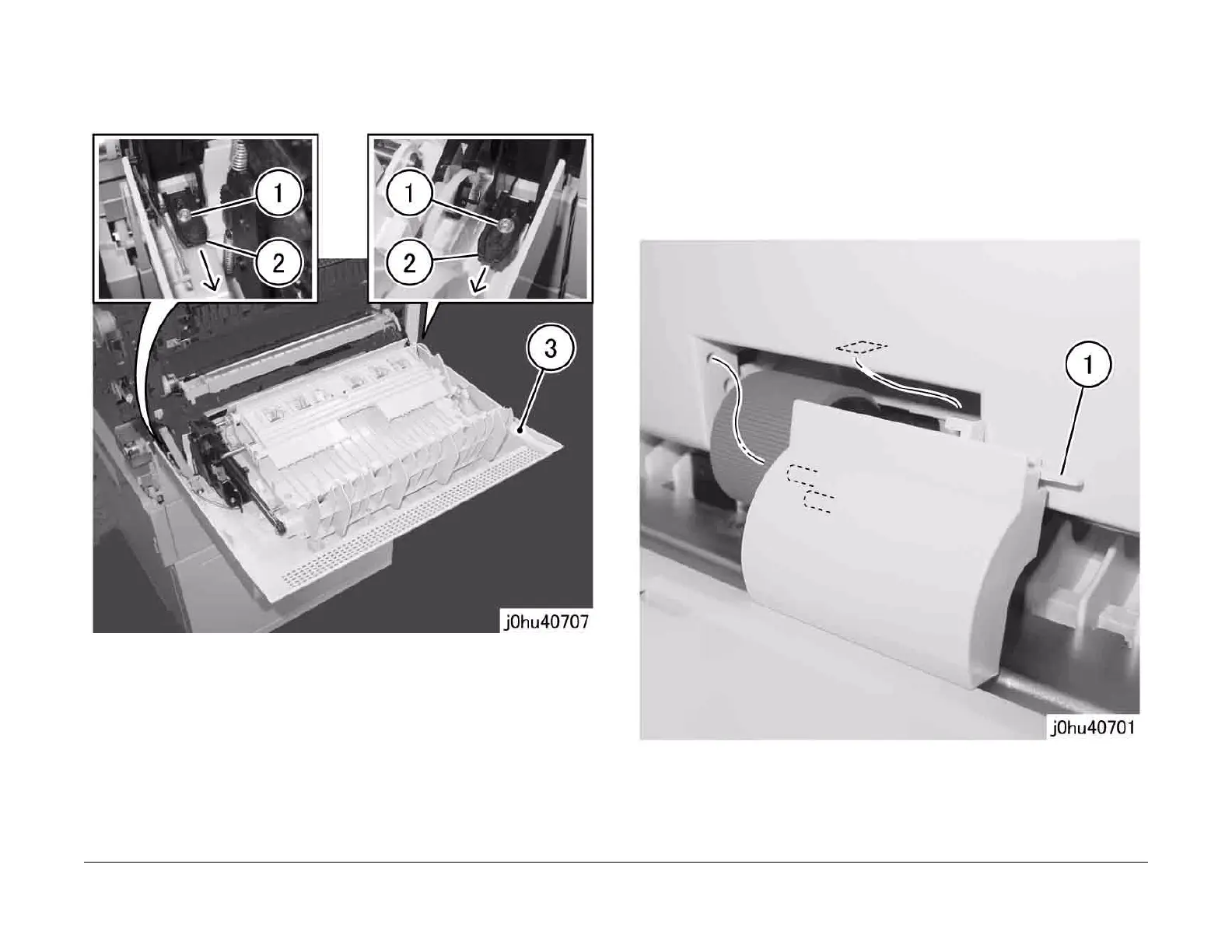

7. Remove the Simplex Module (Figure 5).
1 Loosen the Tapping Screws (2).
2 Move the Pivot Retainers (2) in the direction of the arrow.
3 Remove the Simplex Module.
Figure 5
Replacement
1. To install, do the removal steps in reverse order.
REP 7.5.1 Bypass Feed Roll
Parts List on PL 7.5
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Open the Bypass Tray.
2. Remove the Feed Roll Cap (Figure 1).
1 Release the tab to remove the Feed Roll Cap.
Figure 1
