Xerox WorkCentre 5020 - Cleaning the Corotron Wire

July, 2007
4-46
WorkCentre 5020
REP 7.5.1
Initial Issue
Repairs and Adjustments

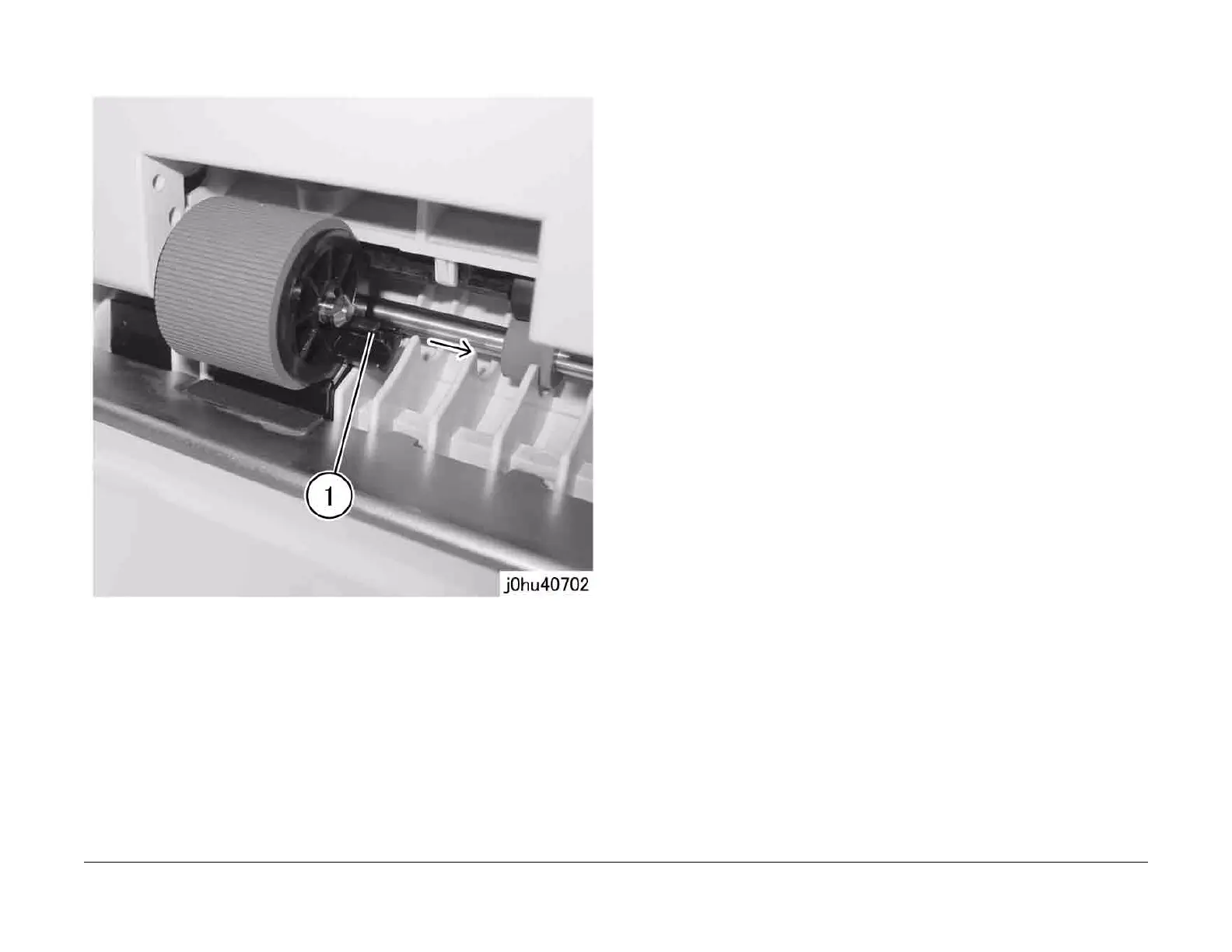

3. Remove the Bypass Feed Roll (Figure 2).
1 Release the hook to remove the Bypass Feed Roll.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
