Xerox WorkCentre 5020 - REP 2.7.1 Tray 1 no Paper Sensor

July, 2007
4-12
WorkCentre 5020
REP 2.7.1
Initial Issue
Repairs and Adjustments
REP 2.7.1 Tray 1 No Paper Sensor
Parts List on PL 2.7
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove Tray 1.
2. Remove Tray 2 (REP 11.1.1).

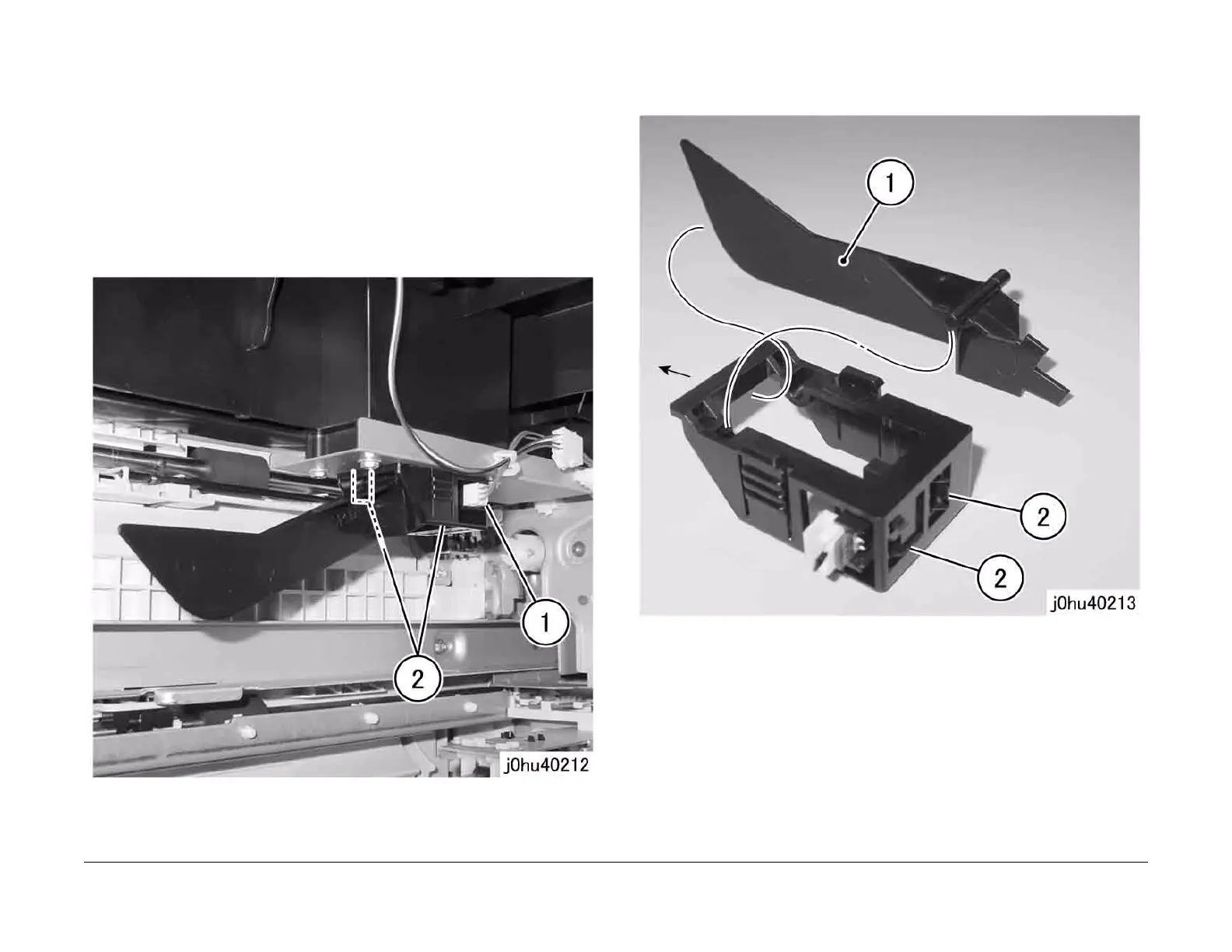

3. Remove the Sensor Housing (Figure 1).
1 Disconnect the connector.
2 Release the tabs (2) to remove the Sensor Housing.
Figure 1
4. Remove the Tray 1 No Paper Sensor (Figure 2).
1 Remove the Actuator.
2 Release the tabs to remove the Tray 1 No Paper Sensor.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
