07/26/2007
5-27
WorkCentre 5020
PL 7.5
Parts List

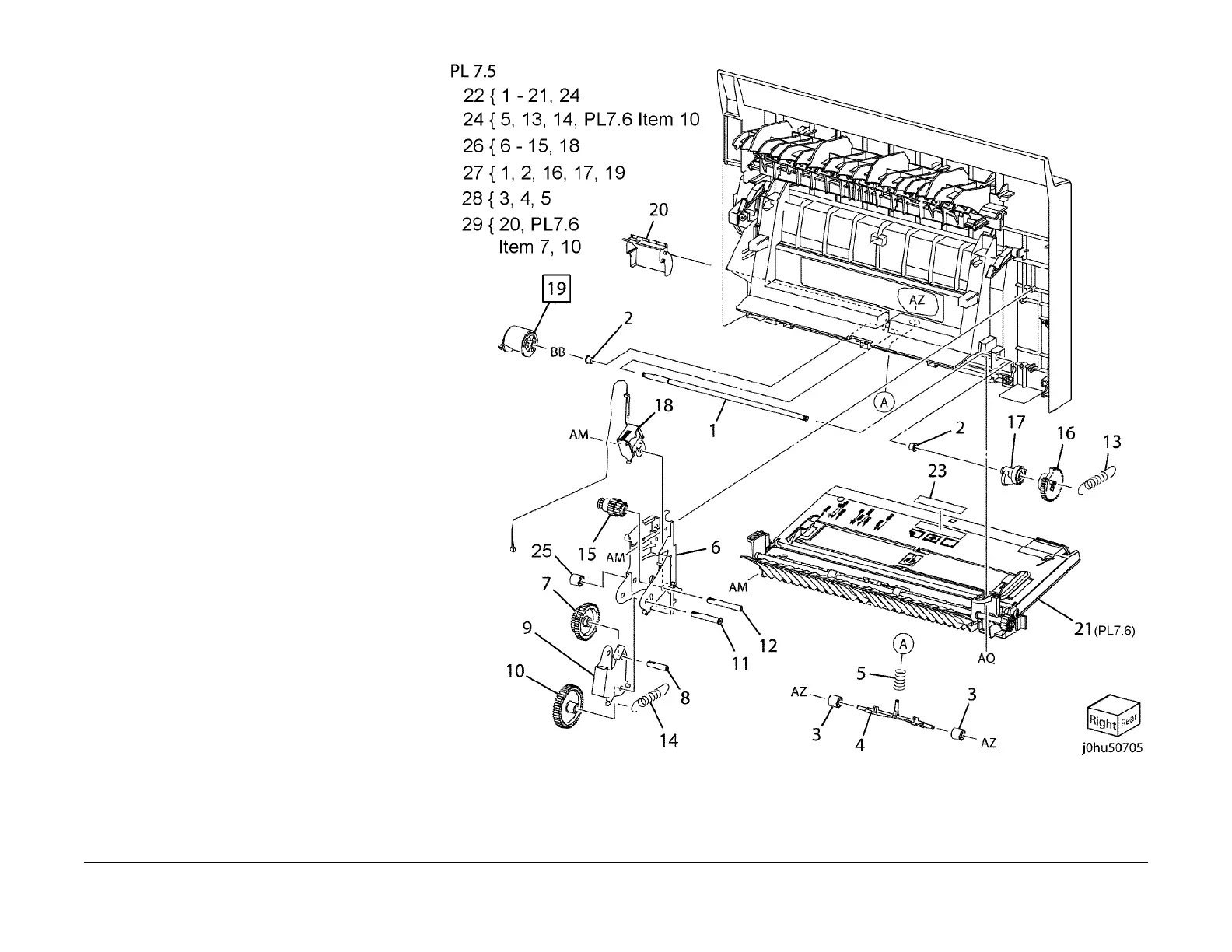

PL 7.5 Bypass Tray Accessory
Item Part Description
1 Bypass Feed Shaft (P/O Item 22)
2 Bearing (P/O Item 22, Item 27)
3 Idler Roll (P/O Item 22, Item 28)
4 Idler Shaft (P/O Item 22, Item 28)
5 Bypass Idler Spring (P/O Item 22,
Item 24, Item 28)
6 Drive Support Bracket (P/O Item
22, Item 26)
7 Gear (42/30T) (P/O Item 22, Item
26)
8 Shaft (P/O Item 22, Item 26)
9 Idler Arm (P/O Item 22, Item 26)
10 Gear (49T) (P/O Item 22, Item 26)
11 Shaft (P/O Item 22, Item 26)
12 Shaft (P/O Item 22, Item 26)
13 Sector Gear Spring (P/O Item 22,
Item 24, Item 26)
14 Idler Arm Spring (P/O Item 22, Item
24, Item 26)
15 807E17870 Gear Pulley
16 Sector Gear (P/O Item 22, Item 27)
17 Cam (P/O Item 22, Item 27)
18 121E20950 Bypass Solenoid
19 059K54730 Bypass Feed Roll (REP 7.5.1)
20 Feed Roll Cap (P/O Item 22, Item
29)
21 Bypass Tray (P/O Item 22)
22 059K48260 Bypass Feeder Assembly
23 Label (Not Spared)
24 604K43820 MSI Spring Kit (P/O Item 22)
25 022E29860 Nudge Roller
26 604K45750 MSI Assembly No. 2 Repair Kit
27 604K45770 MSI Assembly No. 4 Repair Kit
28 604K45780 MSI Assembly No. 5 Repair Kit
29 604K45790 MSI Assembly No. 6 Repair Kit
