Xerox WorkCentre 5020 - REP 11.4.1 Tray 2 Feed Roll

July, 2007
4-85
WorkCentre 5020
REP 11.1.2, REP 11.4.1
Repairs and Adjustments
Initial Issue

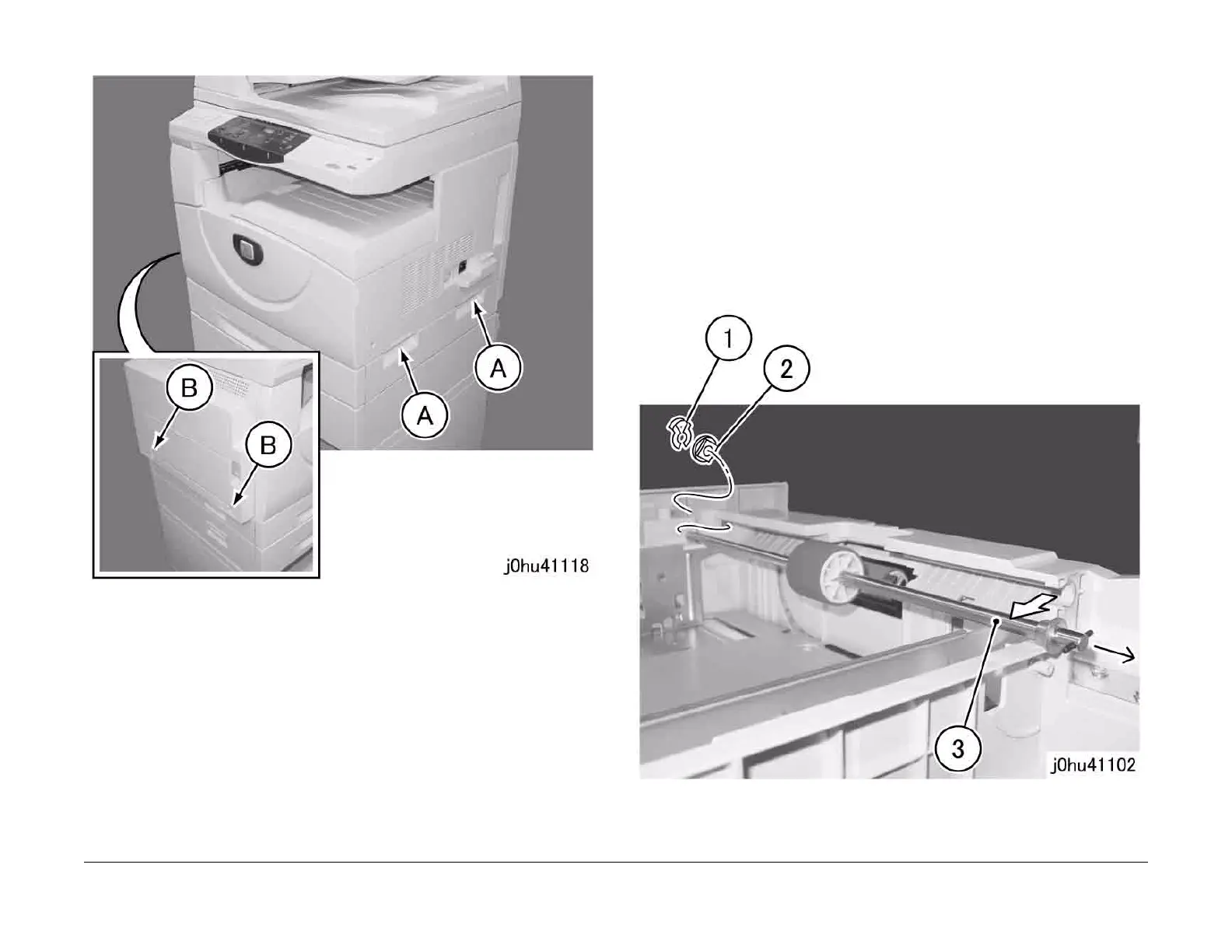

4. Hold onto A (2) and B (2), and remove the IOT from the Single Tray Module (Figure 4).
Figure 4
Replacement
1. To install, do the removal steps in reverse order.
REP 11.4.1 Tray 2 Feed Roll
Parts List on PL 11.4
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove Tray 2 (REP 11.1.1).
2. Remove the Feed Shaft (Figure 1).
1 Remove the KL-Clip.
2 Remove the bearing.
3 Slide the Feed Shaft towards the rear to remove it.
Figure 1
