REP 11.1.2
Initial Issue
Repairs and Adjustments

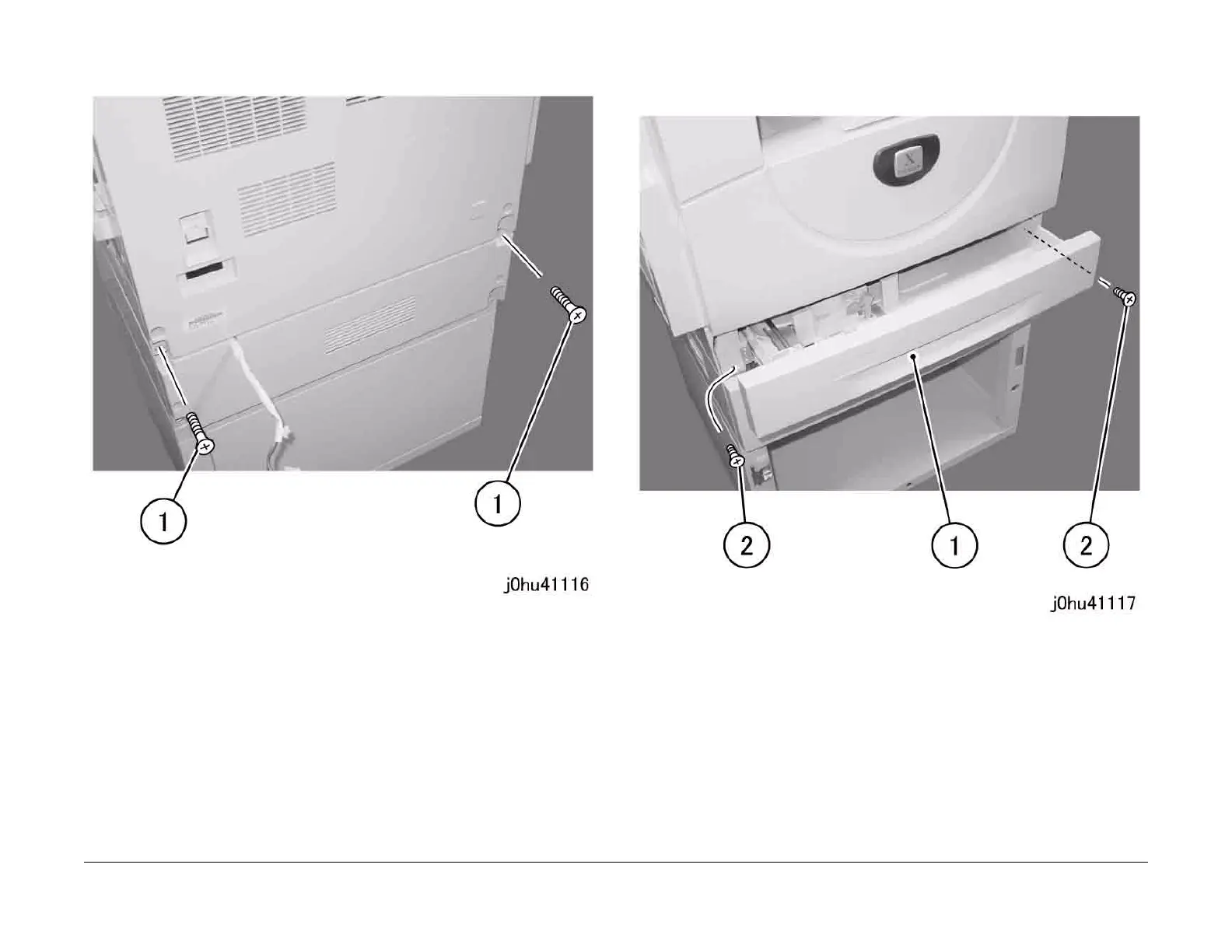

2. Remove the Countersunk Head Screws at the rear (Figure 2).
1 Remove the Countersunk Head Screws (2).
Figure 2
3. Remove the Countersunk Head Screws at the front (Figure 3).
1 Pull out Tray 1.
2 Remove the Countersunk Head Screws (2).
Figure 3
