07/26/2007
5-46
WorkCentre 5020
PL 11.5
Parts List

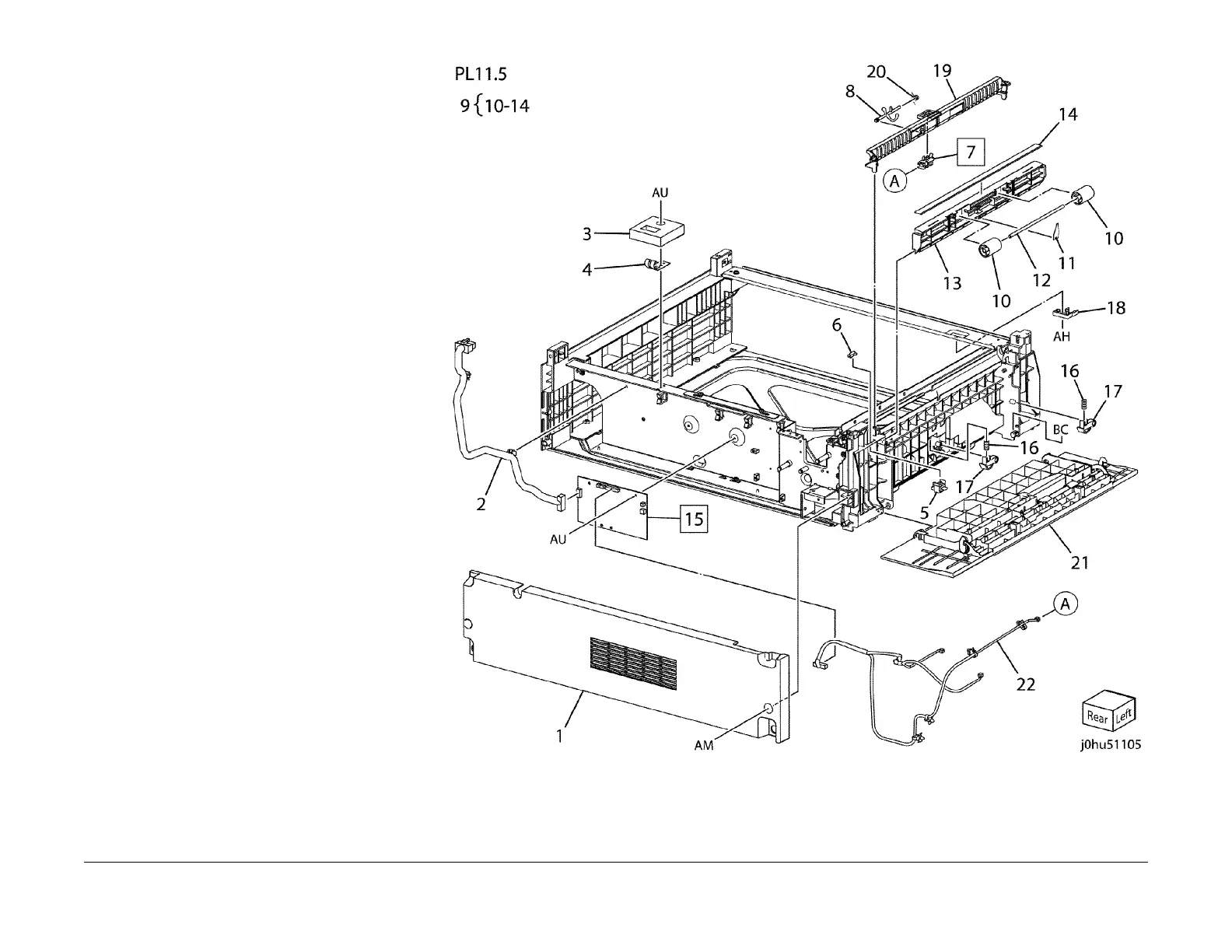

PL 11.5 Single Tray Frame
Component (1 OF 2)
Item Part Description
1 STM Rear Cover (Not Spared)
2 STM Wire Harness (Not Spared)
3 Earth Cushion (Not Spared)
4 Earth Plate (Not Spared)
5 110E11580 STM Interlock Switch
6 Sensor Block (Not Spared)
7 130E87090 STM Feed Sensor (REP 11.5.1)
8 120E28091 Feed Sensor Actuator
9 055K31090 STM Baffle Assembly
10 Roll (P/O Item 9)
11 Plate Spring (P/O Item 9)
12 Shaft (P/O Item 9)
13 Baffle (P/O Item 9)
14 Eliminator (P/O Item 9)
15 960K28562 STM PWB (REP 11.5.2)
16 Guide Spring (Not Spared)
17 Arm Guide (Not Spared)
18 Tray Stopper (Not Spared)
19 Upper Feed Chute
20 809E74030 Feed Sensor Spring
21 Access Cover 2
22 Sensor Wire Harness (Not Spared)
