Xerox WorkCentre 5020 - PL 11.3 Tray 2 Component (2 of 3)

07/26/2007
5-44
WorkCentre 5020
PL 11.3
Parts List

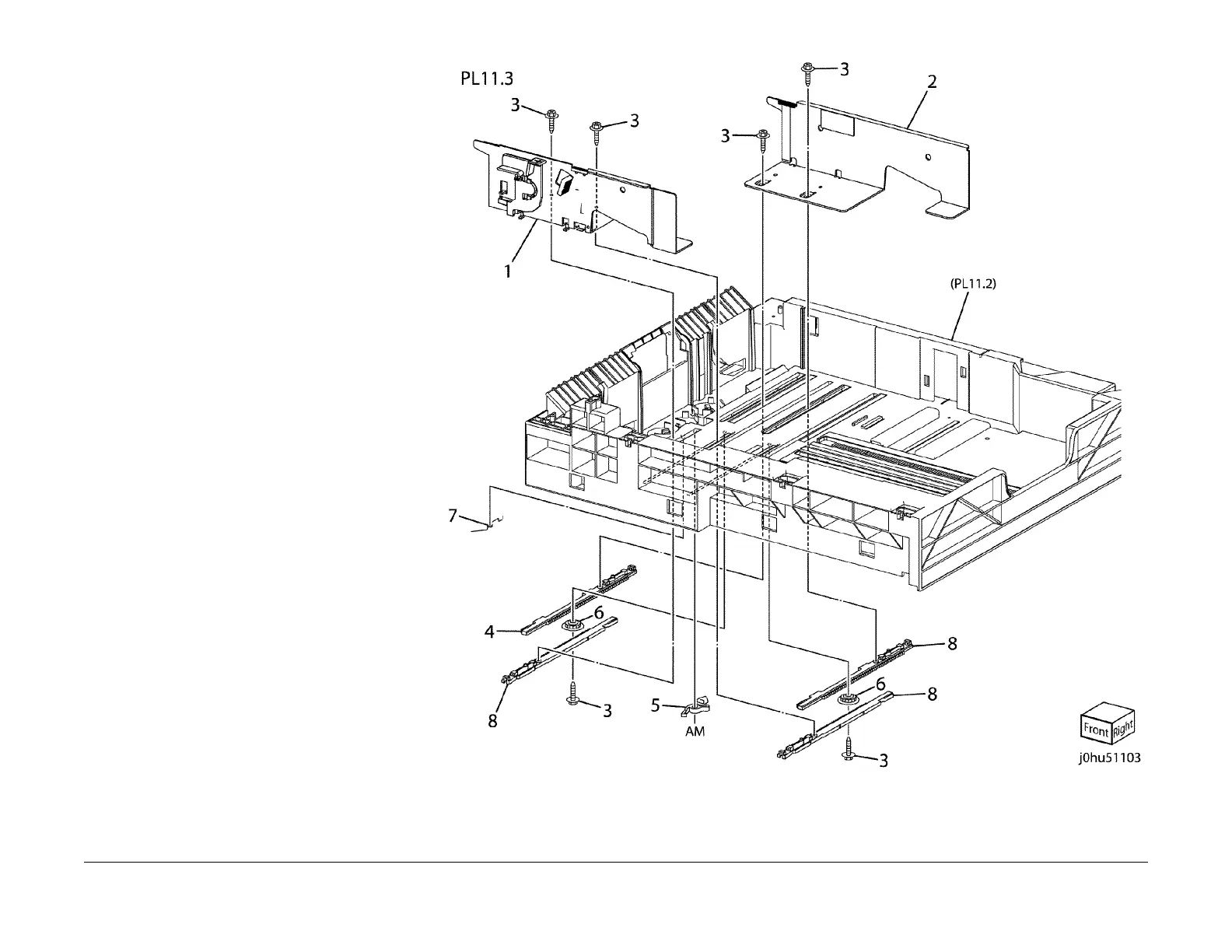

PL 11.3 Tray 2 Component (2 OF 3)
Item Part Description
1 038K89761 Front Side Guide
2 038K89821 Rear Side Guide
3 – Tapping Screw (P/O PL11.1 Item 1)
4 – Rack (P/O PL11.1 Item 1)
5 – Latch (P/O PL11.1 Item 1)
6 – Pinion (P/O PL11.1 Item 1)
7 – Latch Spring (P/O PL11.1 Item 1)
8 – Rack (P/O PL11.1 Item 1)
