Xerox WorkCentre 5020 - REP 10.7.1 Carriage Cable and Drum

July, 2007
4-76
WorkCentre 5020
REP 10.6.1, REP 10.7.1
Initial Issue
Repairs and Adjustments

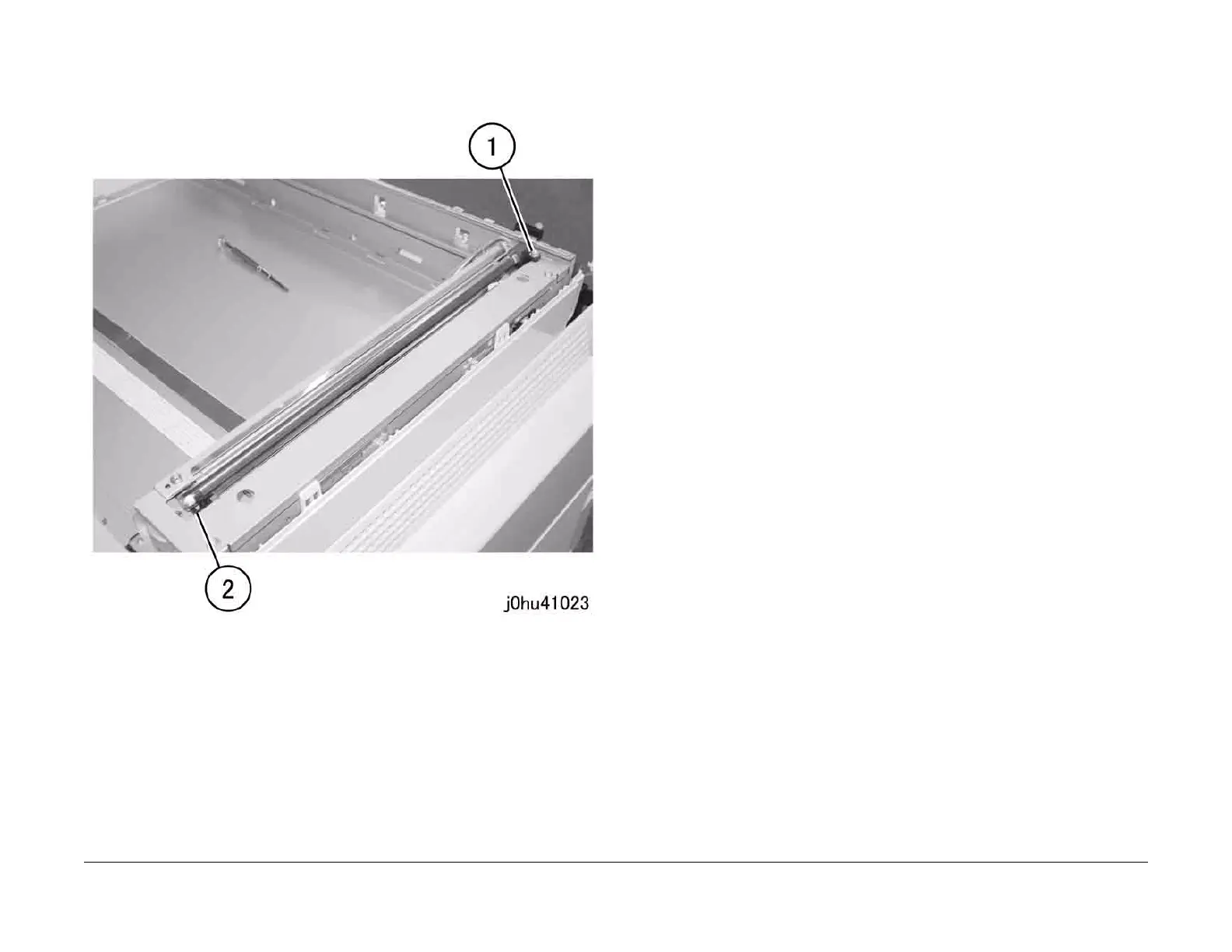

5. Remove the Exposure Lamp (Figure 3).
1 Remove the screw.
2 Remove the Exposure Lamp from the Lamp Holder.
Figure 3
Replacement
1. To install, do the removal steps in reverse order.
REP 10.7.1 Carriage Cable and Drum
Parts List on PL 10.7
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the following parts:
• Platen Cover (PL 10.1)
• Control Panel (REP 8.3.1)
2. Remove the IIT Upper Cover (REP 10.2.1).
3. Remove the IIT Carriage (REP 10.3.1).
4. Turn the IIT Carriage upside down.
