Xerox WorkCentre 5020 - REP 9.1.1 Output Tray

July, 2007
4-61
WorkCentre 5020
REP 9.1.1
Repairs and Adjustments
Initial Issue
REP 9.1.1 Output Tray
Parts List on PL 9.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Open the Front Cover.

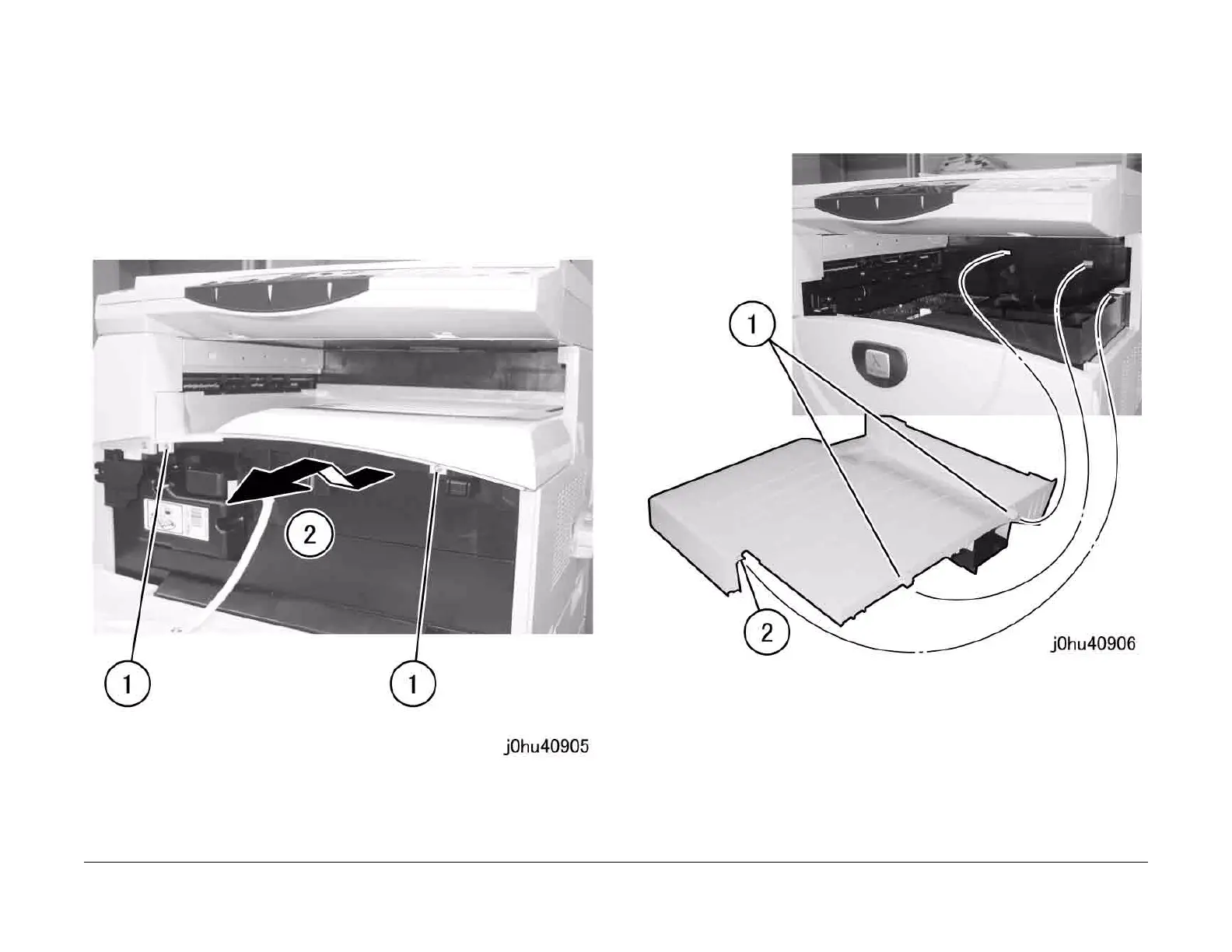

2. Remove the Output Tray (Figure 1).
1 Remove the Tapping Screws (2).
2 Remove the Output Tray by pulling it in the direction of the arrow.
Figure 1
Replacement
1. To install, do the removal steps in reverse order.
2. Perform the following steps to install the Output Tray (Figure 2).
1 Insert the tabs (2) into the square hole of the frame.
2 Attach the hook.
Figure 2
