07/26/2007
5-16
WorkCentre 5020
PL 2.9
Parts List

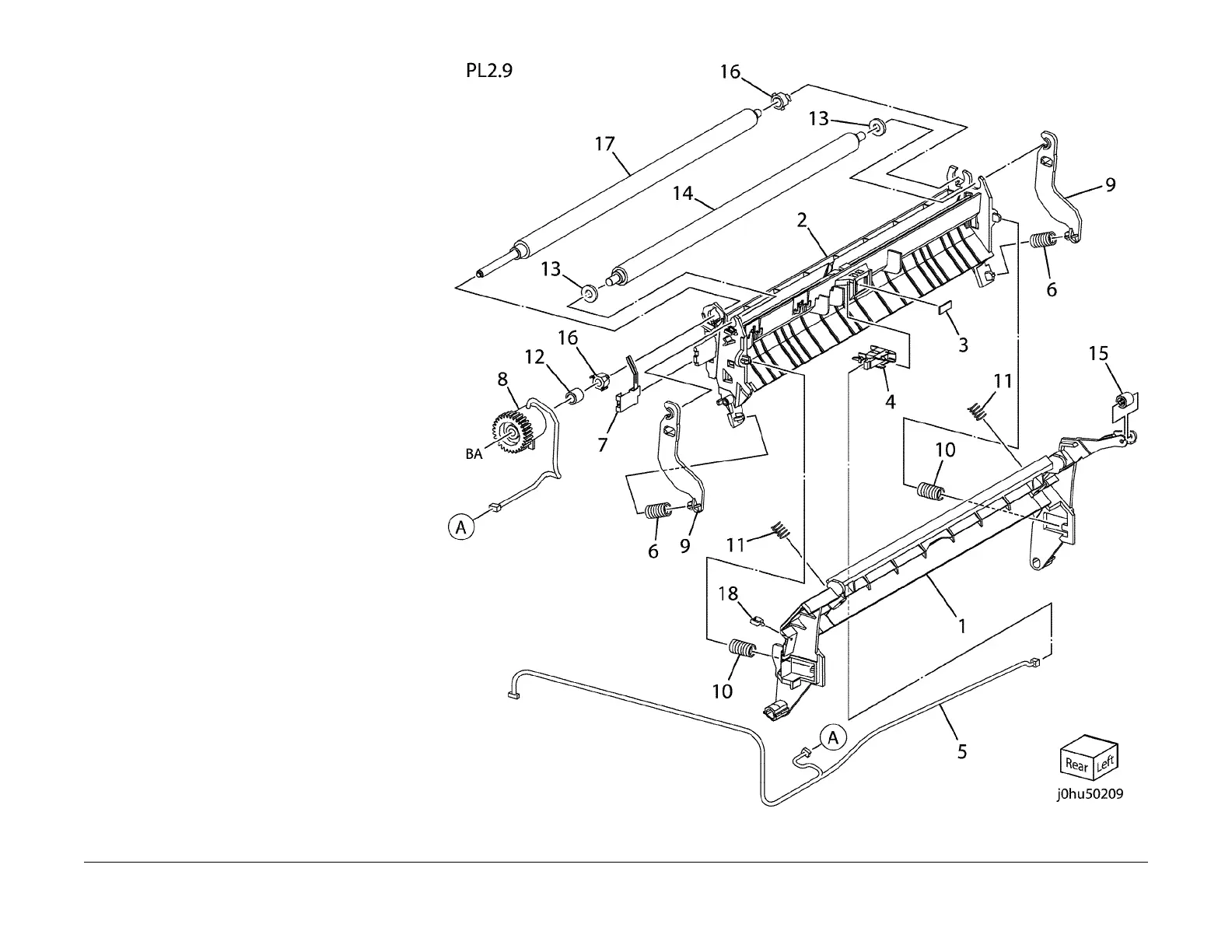

PL 2.9 Registration Component
Item Part Description
1 Corotron Bracket (P/O PL2.8 Item
1)
2 Registration Frame (P/O PL2.8
Item 1)
3 Sensor Plate (P/O PL2.8 Item 1)
4 130K71230 Registration Sensor Assembly
5 Wire Harness (P/O PL2.8 Item 1)
6 Registration Press Spring (P/O
PL2.8 Item 1)
7 Ground Spring (P/O PL2.8 Item 1)
8 121K39710 Registration Clutch Assembly
9 Press Level Arm (P/O PL2.8 Item
1)
10 Corotron Press Spring (P/O PL2.8
Item 1)
11 Transfer Corotron Spring (P/O
PL2.8 Item 1)
12 Ground Sleeve (P/O PL2.8 Item 1)
13 Washer (P/O PL2.8 Item 1)
14 Press Roll (P/O PL2.8 Item 1)
15 Closing Roll (P/O PL2.8 Item 1)
16 Bearing (P/O PL2.8 Item 1)
17 059K53230 Registration Roll
18 Clamp (P/O PL2.8 Item 1)
