Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-47
WorkCentre 5020
PL 11.6
Parts List

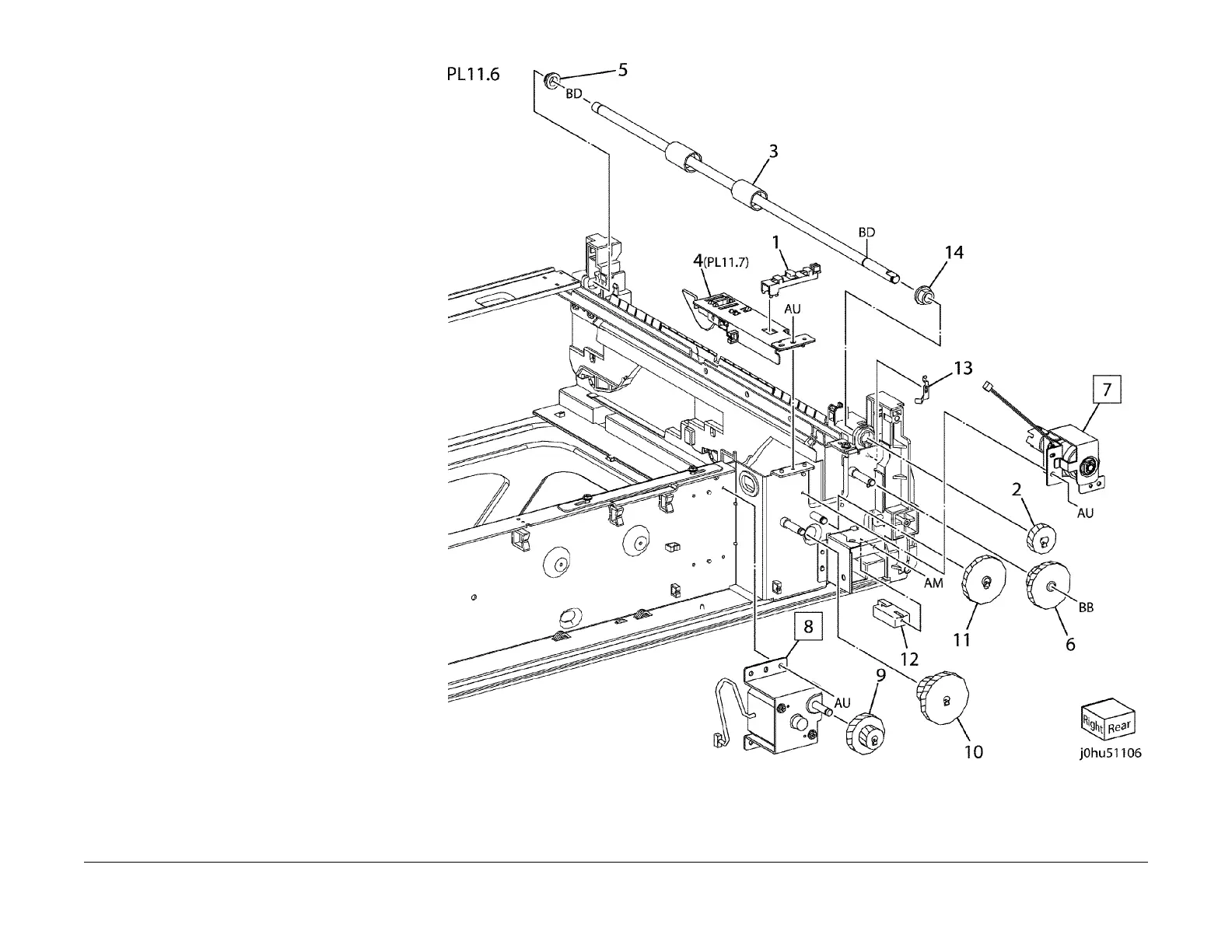

PL 11.6 Single Tray Frame
Component (2 OF 2)
Item Part Description
1 – Harness Holder (Not Spared)
2 807E18360 Gear (Helical 21T)
3 059K48440 Take Away Roll
4 848K02140 No Paper Sensor Assembly
5 013E32180 Bearing (220v)
– 013E90840 Bearing (110V)
6 807E18410 Gear (Helical 20T/36T)
7 068K53590 STM Feed Clutch (REP 11.6.1)
8 127K52180 STM Feed Motor (REP 11.6.2)
9 807E18380 Gear (Helical 51T/15T)
10 807E18390 Gear (Helical 40T/18T)
11 807E18400 Gear (Helical 37T)
12 – Tray Rear Stopper (Not Spared)
13 – Earth Plate (Not Spared)
14 – Bearing (Not Spared)
