Xerox WorkCentre 5020 - PL 2.6 Tray 1 Frame Components (2 of 2)

07/26/2007
5-13
WorkCentre 5020
PL 2.6
Parts List

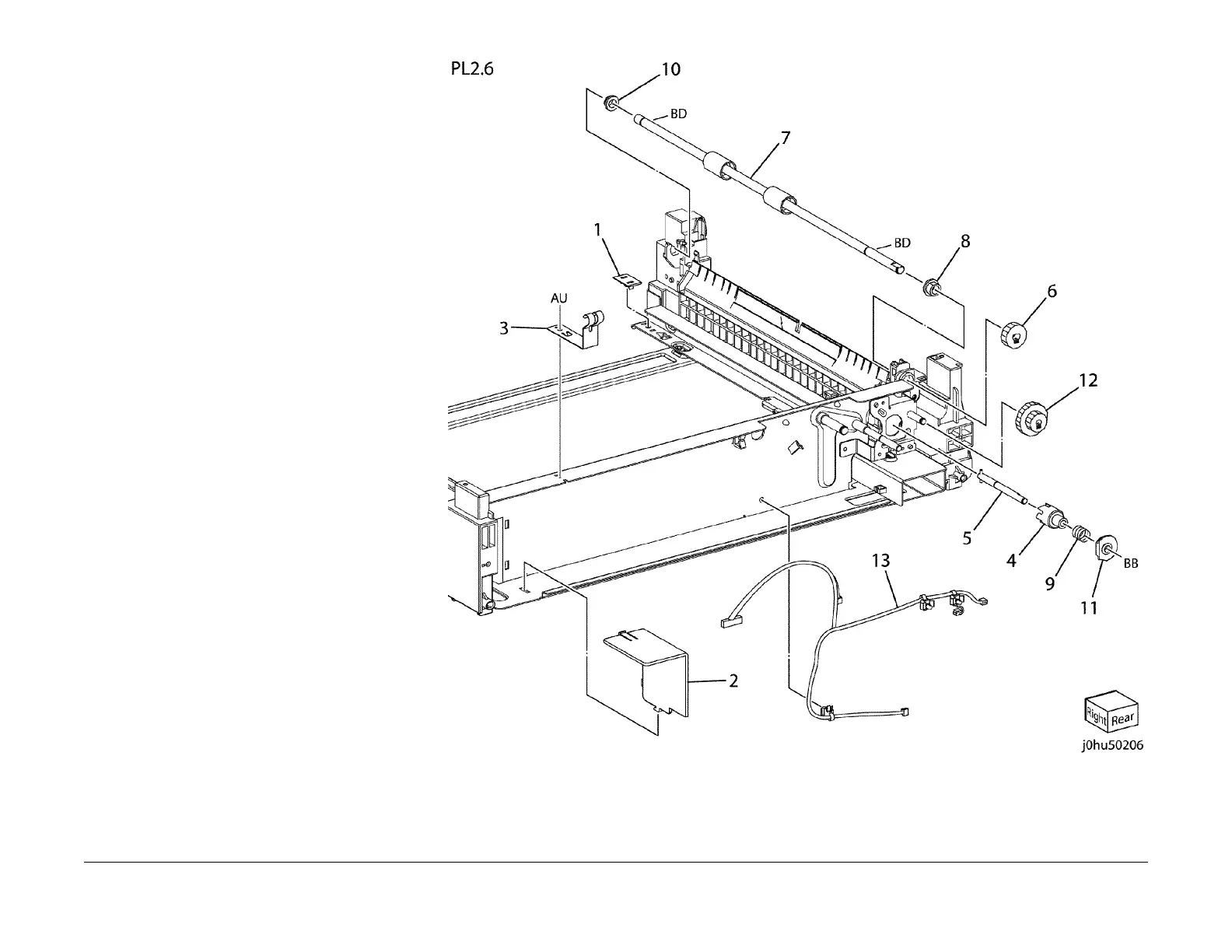

PL 2.6 Tray 1 Frame Components (2
OF 2)
Item Part Description
1 – Tray Spacer (Not Spared)
2 – Enclosure Plate (Not Spared)
3 – Earth Plate (Not Spared)
4 005E18630 Coupling Clutch
5 006K25750 Drive Feed Shaft
6 807E19460 Gear (21T)
7 059K48200 Take Away Roll Assembly
8 413W77559 Bearing
9 809E54180 Coupling Spring
10 013E90840 Bearing
11 013E32690 Coupling Bearing
12 807E19450 Gear (16T/29T)
13 – Sensor Wire Harness (Not Spared)
