Xerox WorkCentre 5020 - PL 2.5 Tray 1 Frame Components

07/26/2007
5-12
WorkCentre 5020
PL 2.5
Parts List

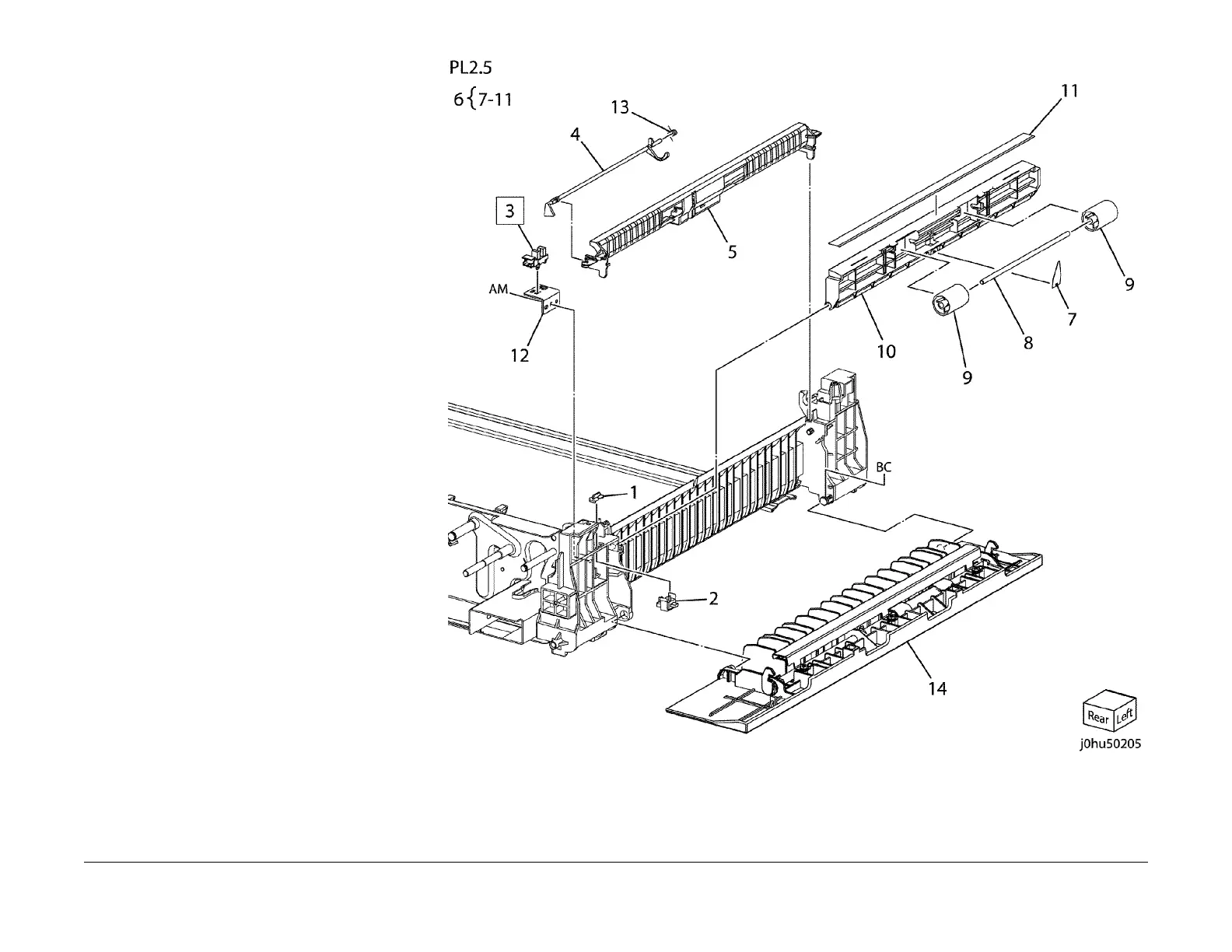

PL 2.5 Tray 1 Frame Components
Item Part Description
1 – Sensor Block (Not Spared)
2 110E11580 Tray 1 Interlock Switch
3 130E87090 Tray 1 Feed Sensor (REP 2.5.1)
4 120E29540 Actuator
5 – Feed Chute (Not Spared)
6 – Upper Baffle (Not Spared)
7 – Plate Spring (P/O Item 6)
8 – Shaft (P/O Item 6)
9 – Roll (P/O Item 6)
10 – Upper Baffle (P/O Item 6)
11 – Eliminator (Not Spared)
12 – Sensor Bracket (Not Spared)
13 – Feed Sensor Spring (Not Spared)
14 – Access Cover 1 (Not Spared)
