Xerox WorkCentre 5020 Service Documentation

July, 2007
4-65
WorkCentre 5020
REP 10.1.1
Repairs and Adjustments
Initial Issue
REP 10.1.1 IIT Platen Cover
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Platen Cover (PL 10.1) (Figure 1) by lifting it straight up.

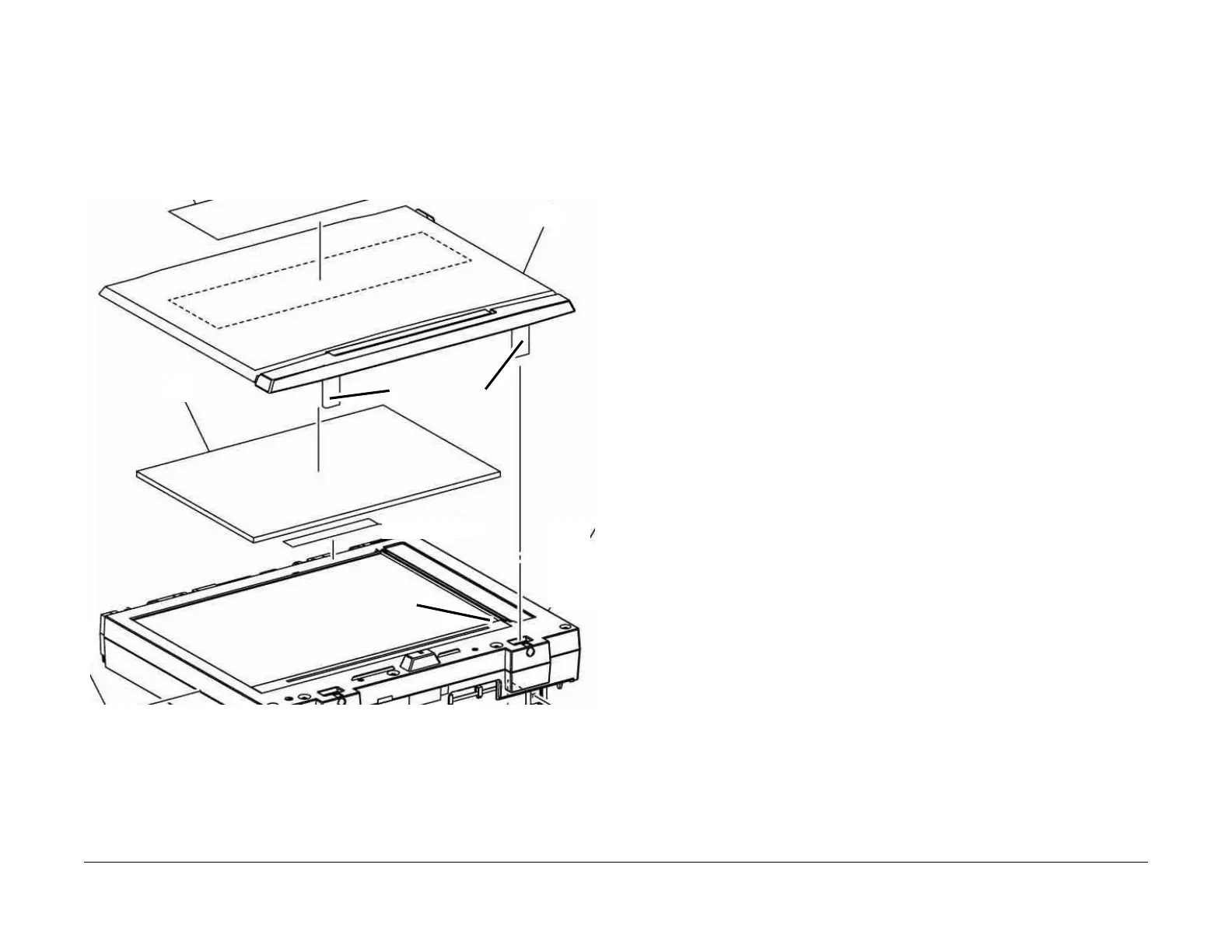

Figure 1
Replacement
NOTE: The Platen Cover comes as a kit, consisting of a Platen Cover and a Platen Cushion
(Figure 1).
1. Place the Platen Cushion on the Platen Glass, with the adhesive strips facing up.
2. Remove the backing from the adhesive strips.
3. Position the Platen Cushion against the back left corner of the Platen Glass (Figure 1).
4. Insert the mounting posts (Figure 1) of Platen Cover into the mounting holes.
5. Carefully lower the Platen Cover down onto the Platen Cushion. Press down evenly to
ensure good adhesion.
Platen Cover
Platen Cushion
When installing a new Platen
Cushion, place it against this
corner
mounting posts

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
