WorkCentre 5020
REP 2.2.1
Repairs and Adjustments
Initial Issue
REP 2.2.1 Tray 1 Feed Clutch (SCC)
Parts List on PL 2.2
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Rear Cover (REP 9.2.1).

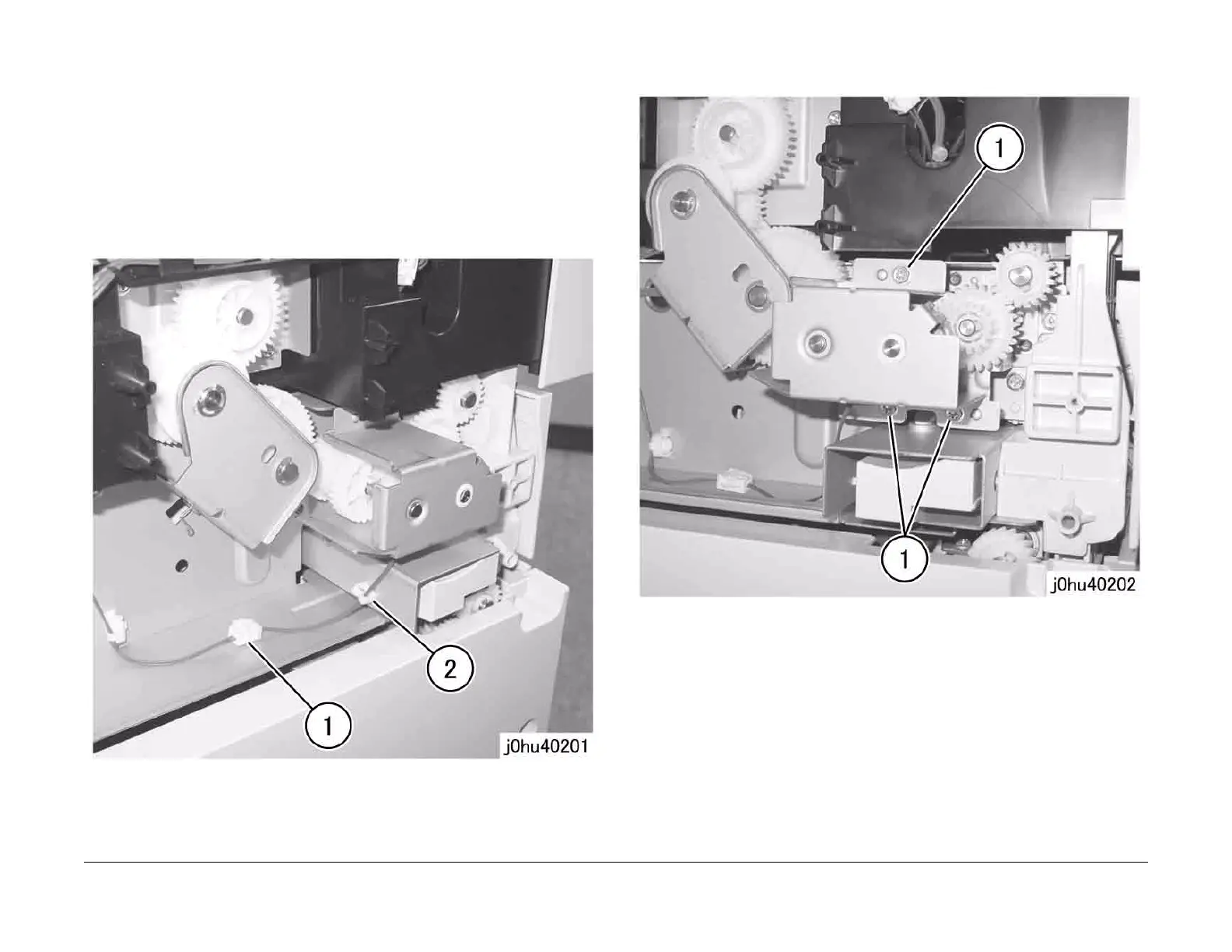

2. Disconnect the connector (Figure 1).
1 Disconnect the connector.
2 Release the wire harness from the clamp.
Figure 1
3. Remove the screws (3) that secure the Clutch Bracket (Figure 2).
1 Remove the screws (3).
Figure 2
To Next Page
