July, 2007
4-6
WorkCentre 5020
REP 1.1.1
Initial Issue
Repairs and Adjustments

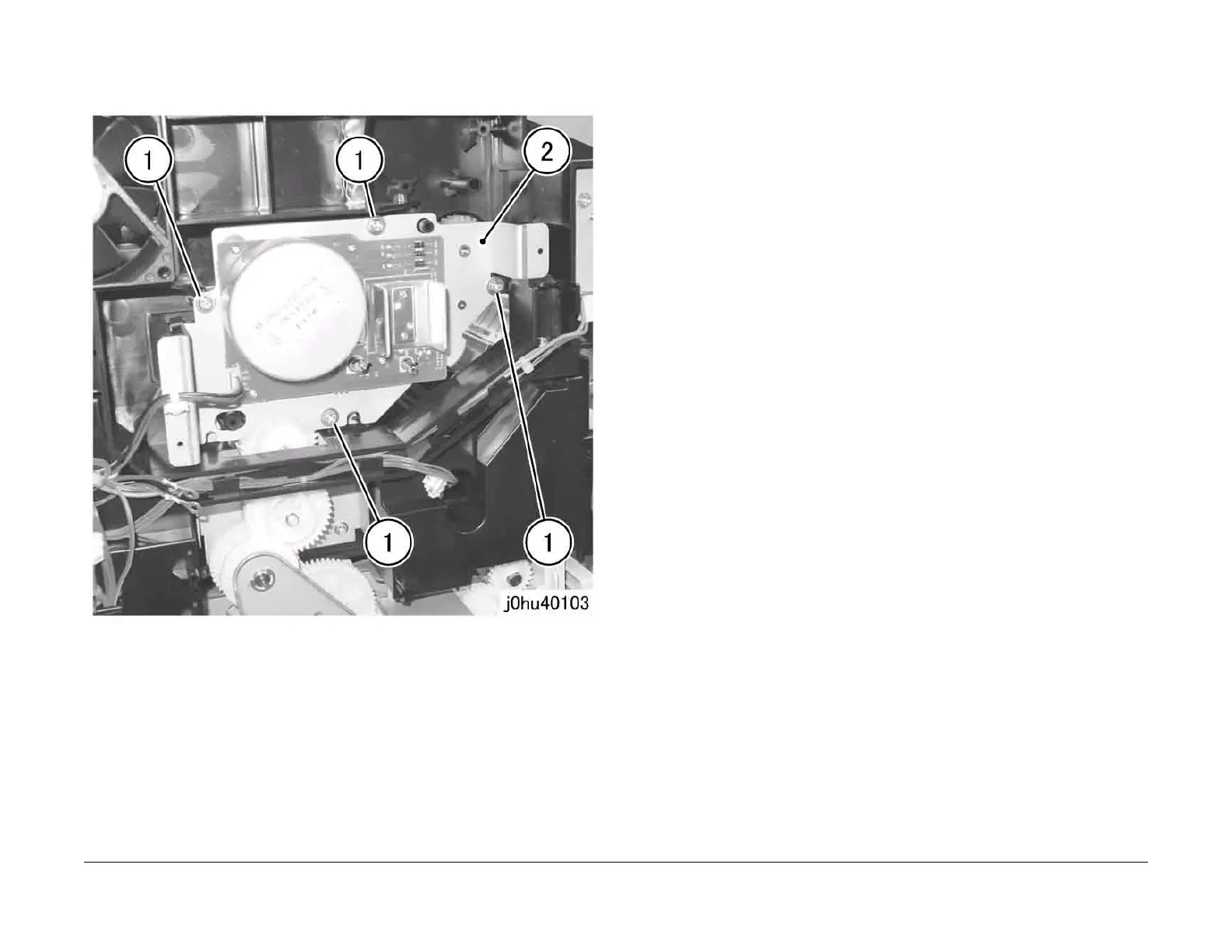

4. Remove the IOT Motor (Figure 2).
1 Remove the Tapping Screws (4).
2 Remove the IOT Motor.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
