July, 2007
4-58
WorkCentre 5020
REP 8.3.1, REP 8.4.1
Initial Issue
Repairs and Adjustments

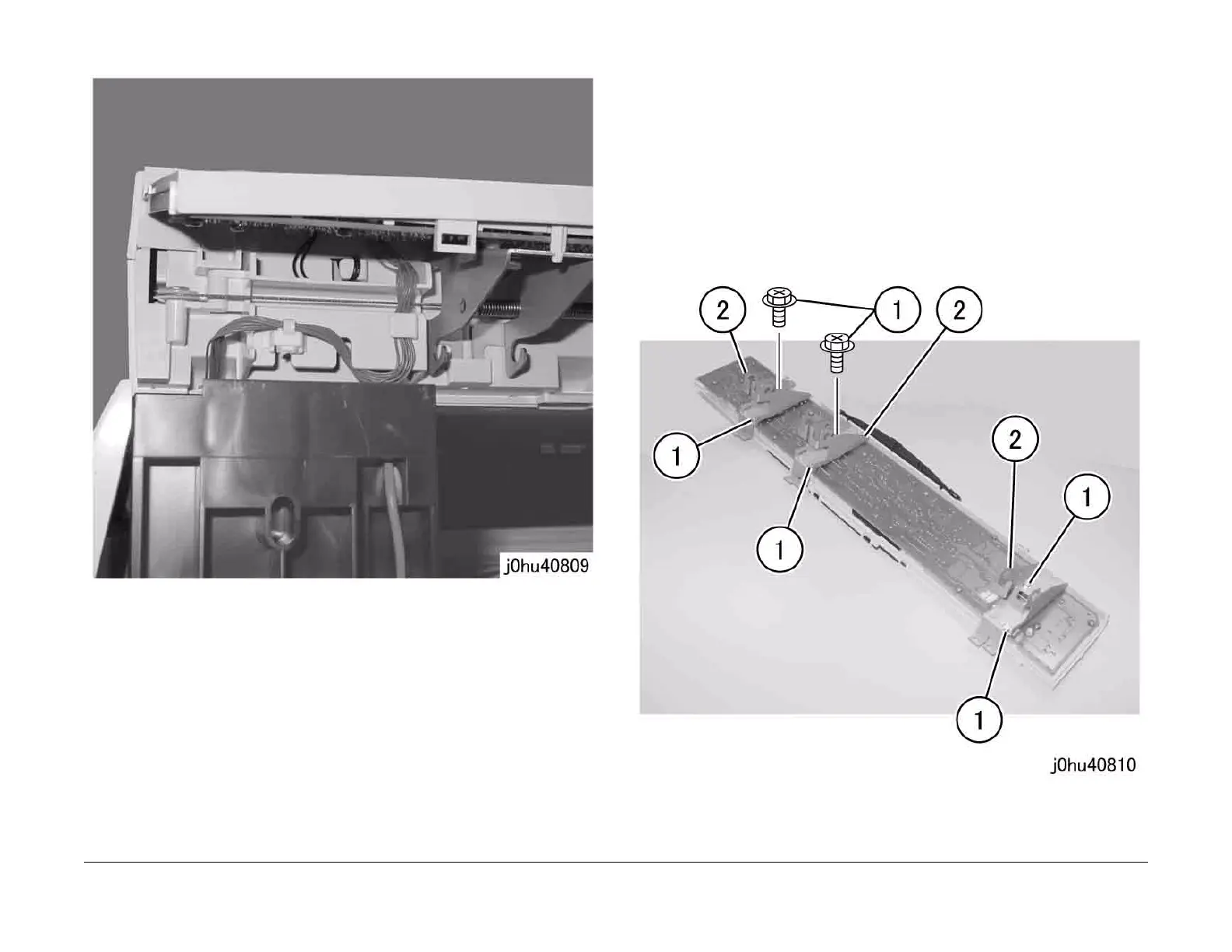

3. Thread the wire harness of the Control Panel as shown (Figure 5).
Figure 5
REP 8.4.1 User Interface PWB (SCC)
Parts List on PL 8.4
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Control Panel (REP 8.3.1).
2. Turn the Control Panel upside down.
3. Remove the Support Brackets (Figure 1).
1 Remove the Tapping Screws (6).
2 Remove the Support Brackets (3).
Figure 1
To Next Page
