Xerox WorkCentre 5020 Service Documentation

July, 2007
4-57
WorkCentre 5020
REP 8.3.1
Repairs and Adjustments
Initial Issue

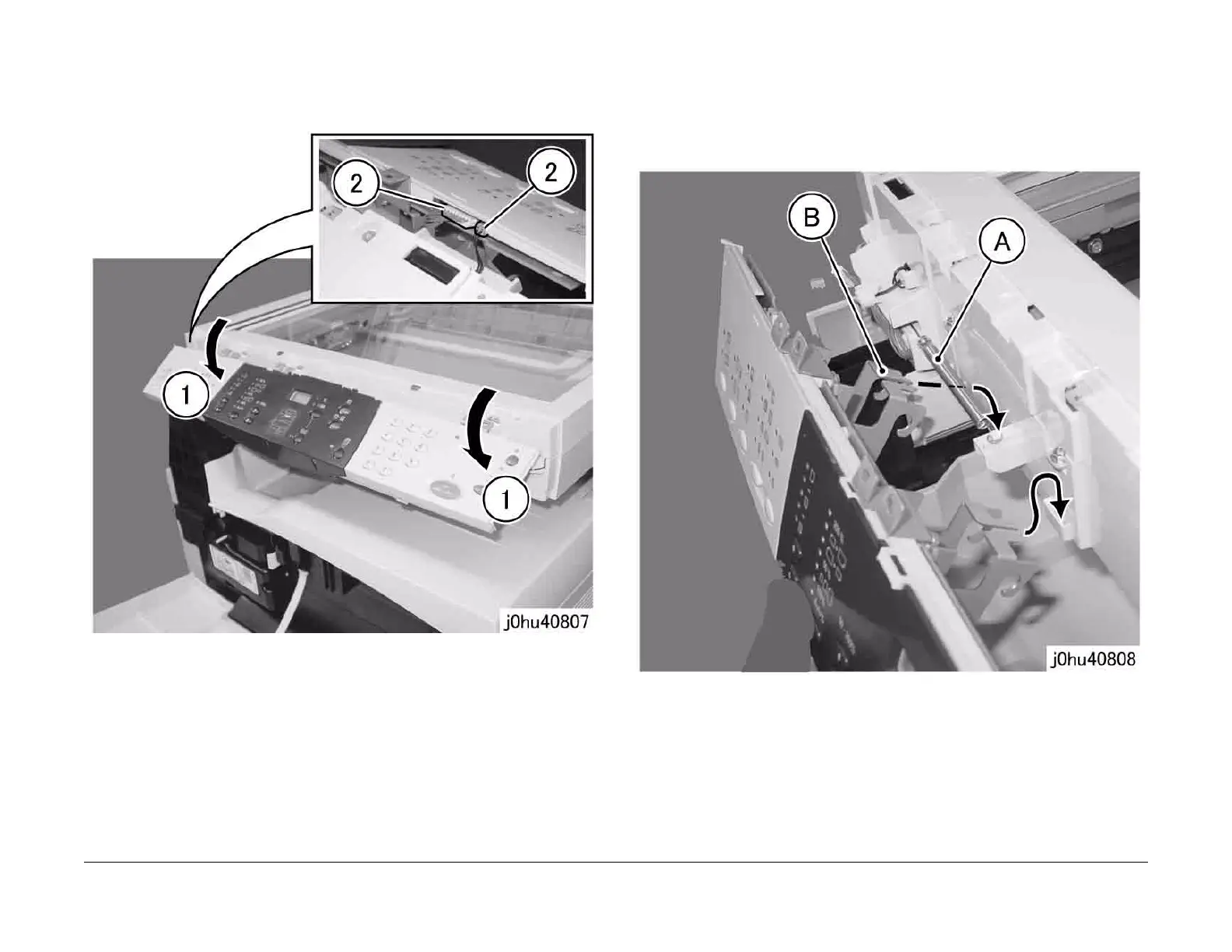

4. Remove the Control Panel (Figure 3).
1 Slide the rear of the Control Panel in the direction of the arrow.
2 Disconnect the connectors (2).
3 Remove the Cable Band from the Control Panel Hook (Figure 4, B).
Figure 3
Replacement
1. To install, do the removal steps in reverse order.
2. When installing the Control Panel, attach the Control Panel hooks (3) to the IIT Frame
(Figure 4).
A Spring - On top
B Hook - Below
Figure 4

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
