Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-40
WorkCentre 5020
PL 10.6
Parts List

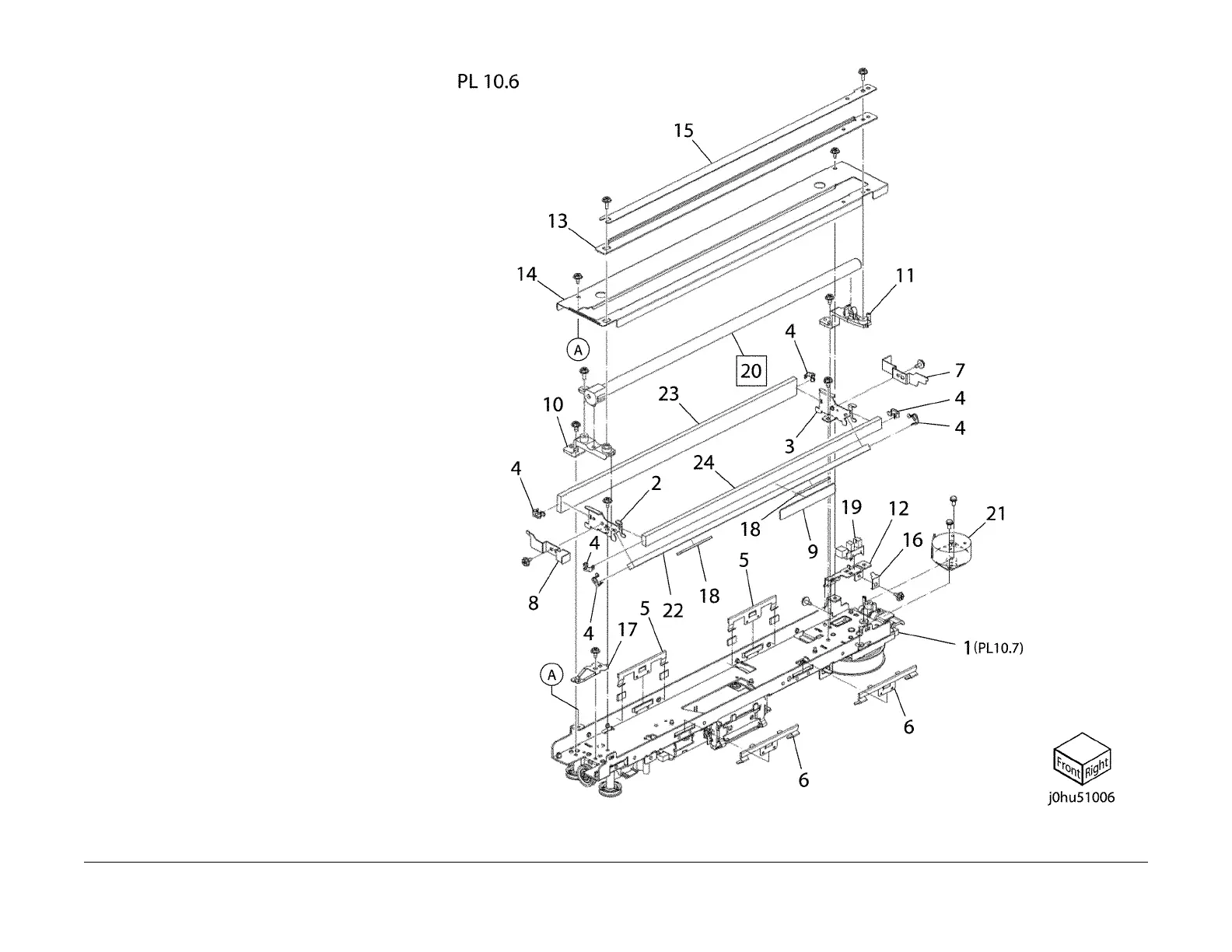

PL 10.6 IIT Carriage Component
Item Part Description
1 – Center Plate (P/O PL10.3 Item 1)
2 – Front Mirror Frame (P/O PL10.3
Item 1)
3 – Rear Mirror Frame (P/O PL10.3
Item 1)
4 – Mirror Clip (P/O PL10.3 Item 1)
5 – Mirror 2 Damper (P/O PL10.3 Item
1)
6 – Mirror 3 Damper (P/O PL10.3 Item
1)
7 – Rear Mirror Stopper (P/O PL10.3
Item 1)
8 – Rear Mirror Stopper (P/O PL10.3
Item 1)
9 – Mirror Weight (P/O PL10.3 Item 1)
10 – Front Lamp Holder (P/O PL10.3
Item 1)
11 – Rear Lamp Holder (P/O PL10.3
Item 1)
12 – Sensor Plate (P/O PL10.3 Item 1)
13 – Reflector (P/O PL10.3 Item 1)
14 – IIT Carriage Cover (P/O PL10.3
Item 1)
15 – Reflector Cover (P/O PL10.3 Item
1)
16 868E12730 Sensor Plate Spring
17 – Rail Contact (P/O PL10.3 Item 1)
18 – Mirror Weight (P/O PL10.3 Item 1)
19 121K41690 Carriage Sensor
20 122E92570 Exposure Lamp (REP 10.6.1)
21 127K57140 Carriage Motor
22 – Mirror 1 (P/O PL10.3 Item 1)
23 – Mirror 2 (P/O PL10.3 Item 1)
24 – Mirror 3 (P/O PL10.3 Item 1)

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
