July, 2007
4-10
WorkCentre 5020
REP 2.3.1, REP 2.5.1
Initial Issue
Repairs and Adjustments
Replacement
1. To install, do the removal steps in reverse order.

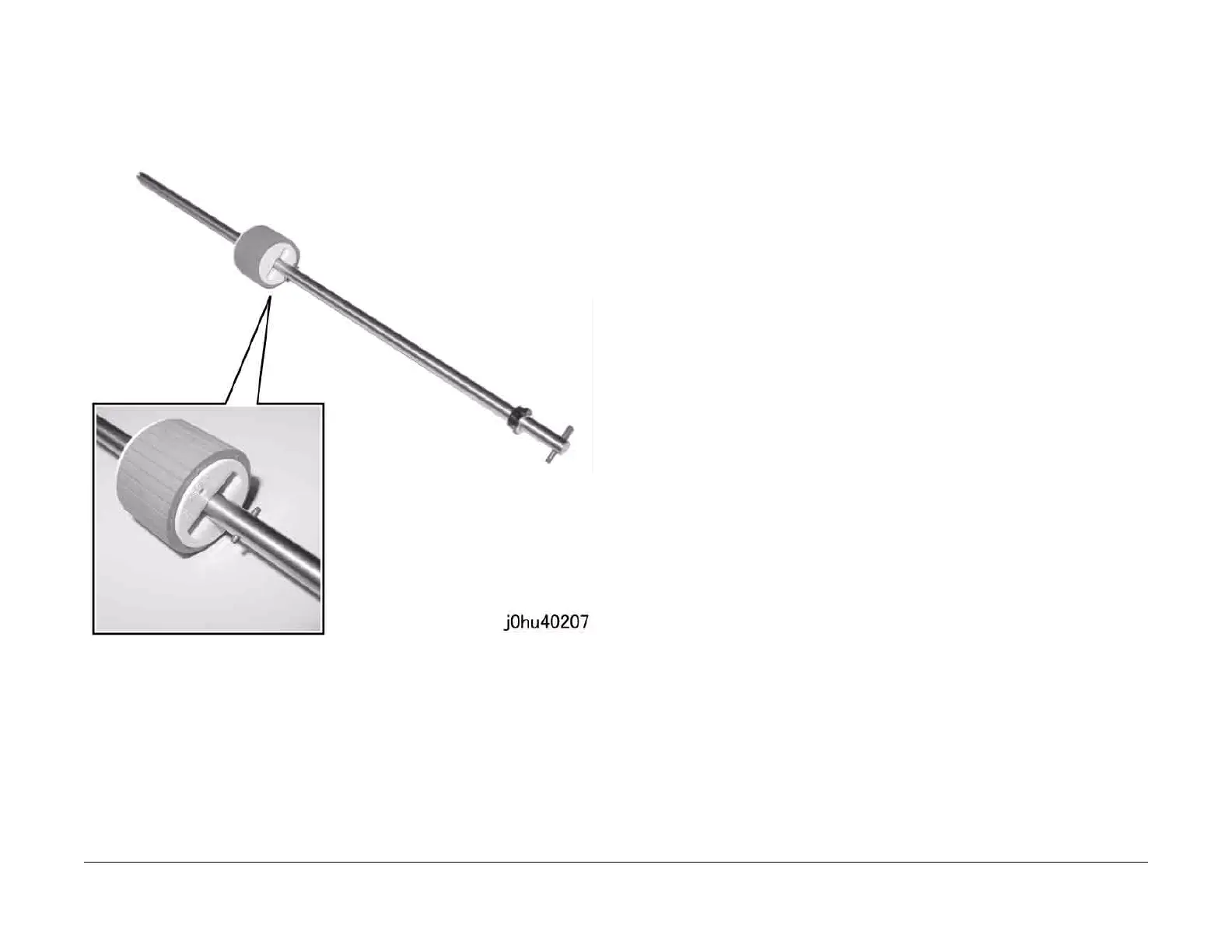

2. When installing the Tray 1 Feed Roll, align the pin of the Feed Shaft with the slot in the
Tray 1 Feed Roll (Figure 3).
Figure 3
REP 2.5.1 Tray 1 Feed Sensor
Parts List on PL 2.5
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove Tray 1.
2. Remove Tray 2 (REP 11.1.1).
3. Remove the Sensor Housing of the Tray 1 No Paper Sensor (REP 2.7.1).
4. Open the Tray 1 Access Cover on the left side of the machine.
To Next Page
