REP 2.3.1 Tray 1 Feed Roll (SCC)
Parts List on PL 2.3
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove all paper from Tray 1.
2. Remove Tray 1.

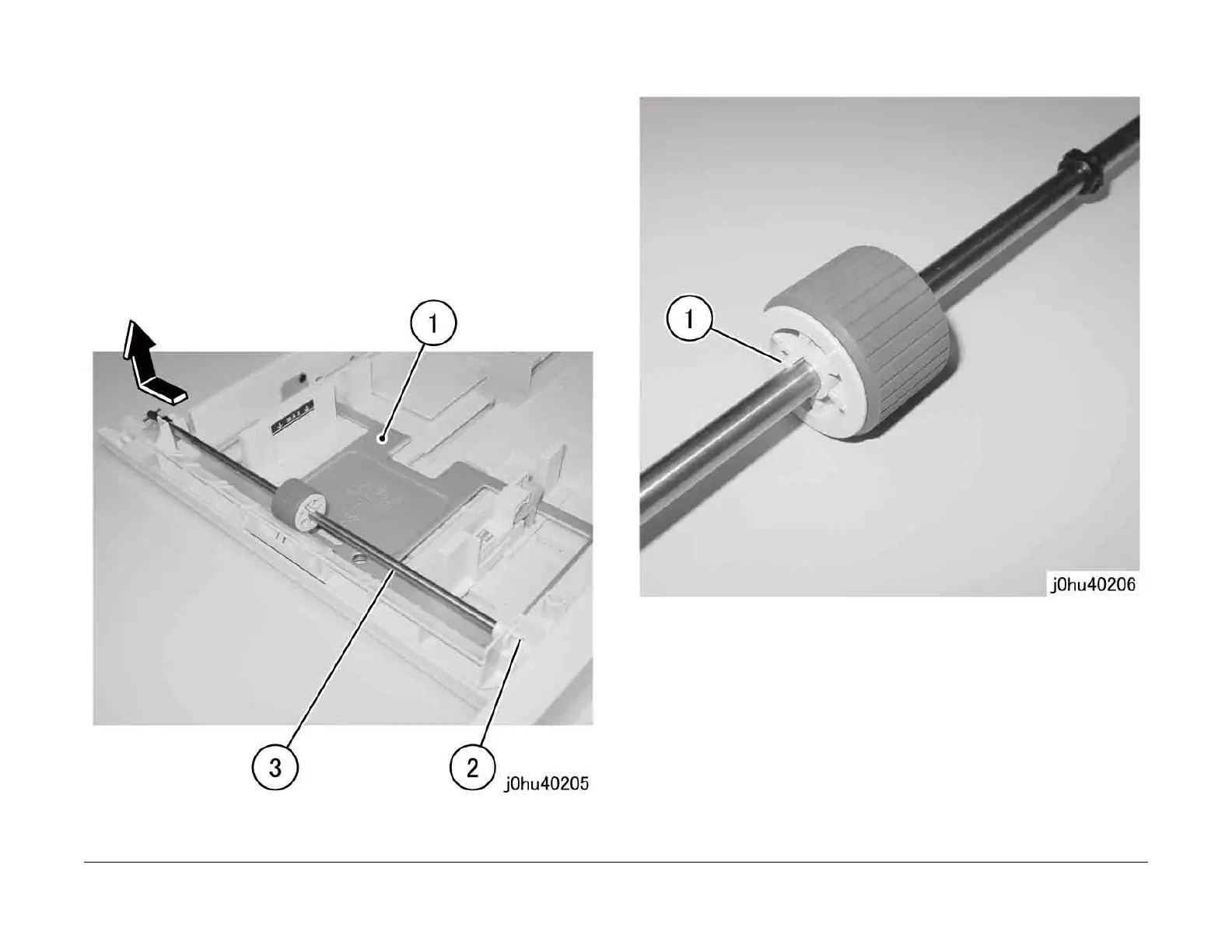

3. Remove the Feed Shaft (Figure 1).
1 Lower the Bottom Plate.
2 Release the Feed Shaft from the bearing by pressing down on the white tab.
3 Remove the Feed Shaft by pulling it in the direction of the arrow.
Figure 1
4. Remove the Tray 1 Feed Roll (Figure 2).
1 Gently lift up the tab to remove the Tray 1 Feed Roll.
Figure 2
