Xerox WorkCentre 5020 - REP 10.6.1 Exposure Lamp

July, 2007
4-75
WorkCentre 5020
REP 10.6.1
Repairs and Adjustments
Initial Issue
REP 10.6.1 Exposure Lamp
Parts List on PL 10.6
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the following parts:
• Platen Cover (PL 10.1)
• Control Panel (REP 8.3.1)
2. Remove the IIT Upper Cover (REP 10.2.1).

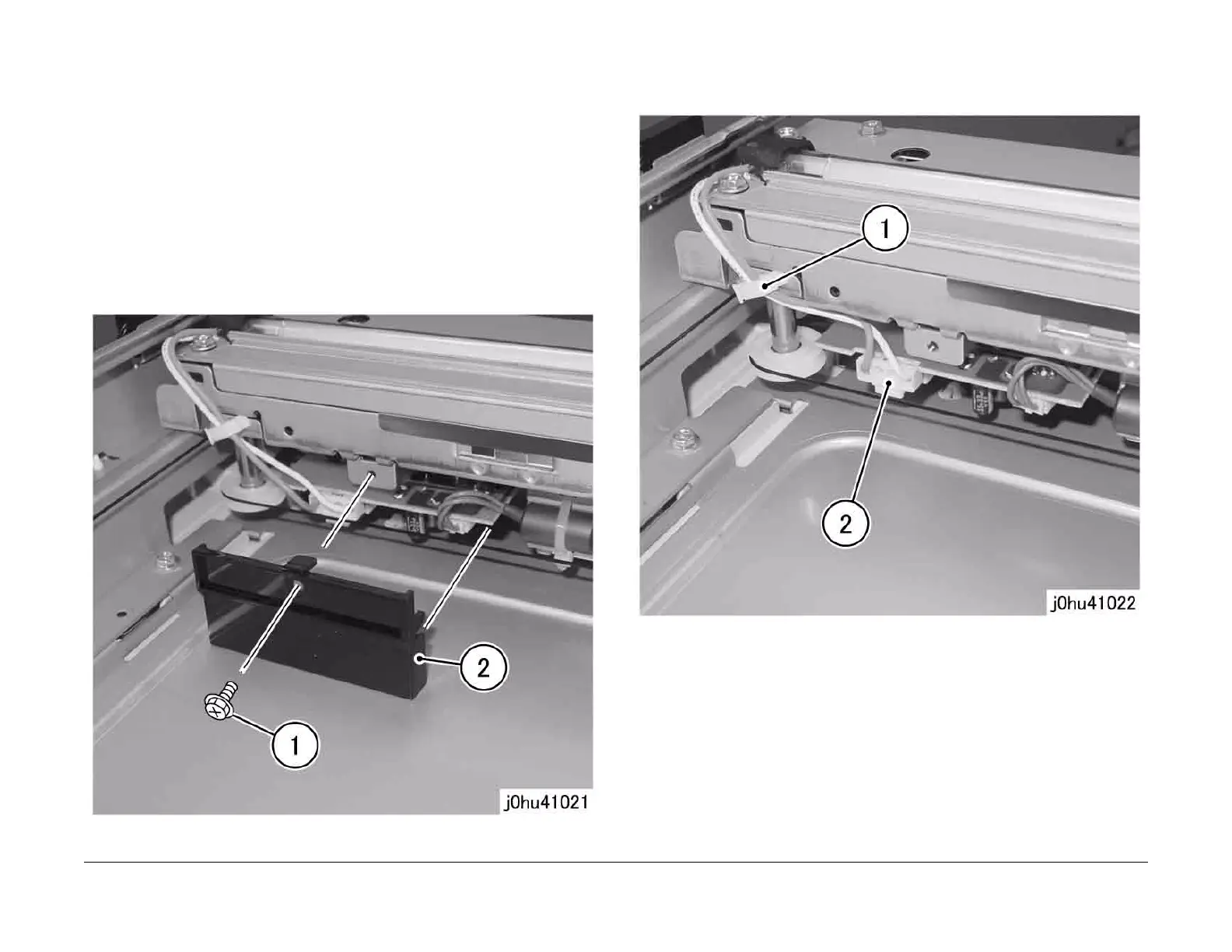

3. Remove the Inverter PWB Bracket 2 (Figure 1).
1 Remove the screw.
2 Remove the Inverter PWB Bracket 2.
Figure 1
4. Disconnect the connector (Figure 2).
1 Release the wire harness from the clamp.
2 Disconnect the connector.
Figure 2
