REP 8.1.1
Repairs and Adjustments
Initial Issue
REP 8.1.1 AIOC PWB (SCC)
Parts List on PL 8.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
CAUTION
Static electricity may damage electrical parts. Always wear an anti-static wrist band during ser-
vice. If a wrist band is not available, touch a metallic section to discharge the static electricity.
1. Remove the Rear Cover (REP 9.2.1).

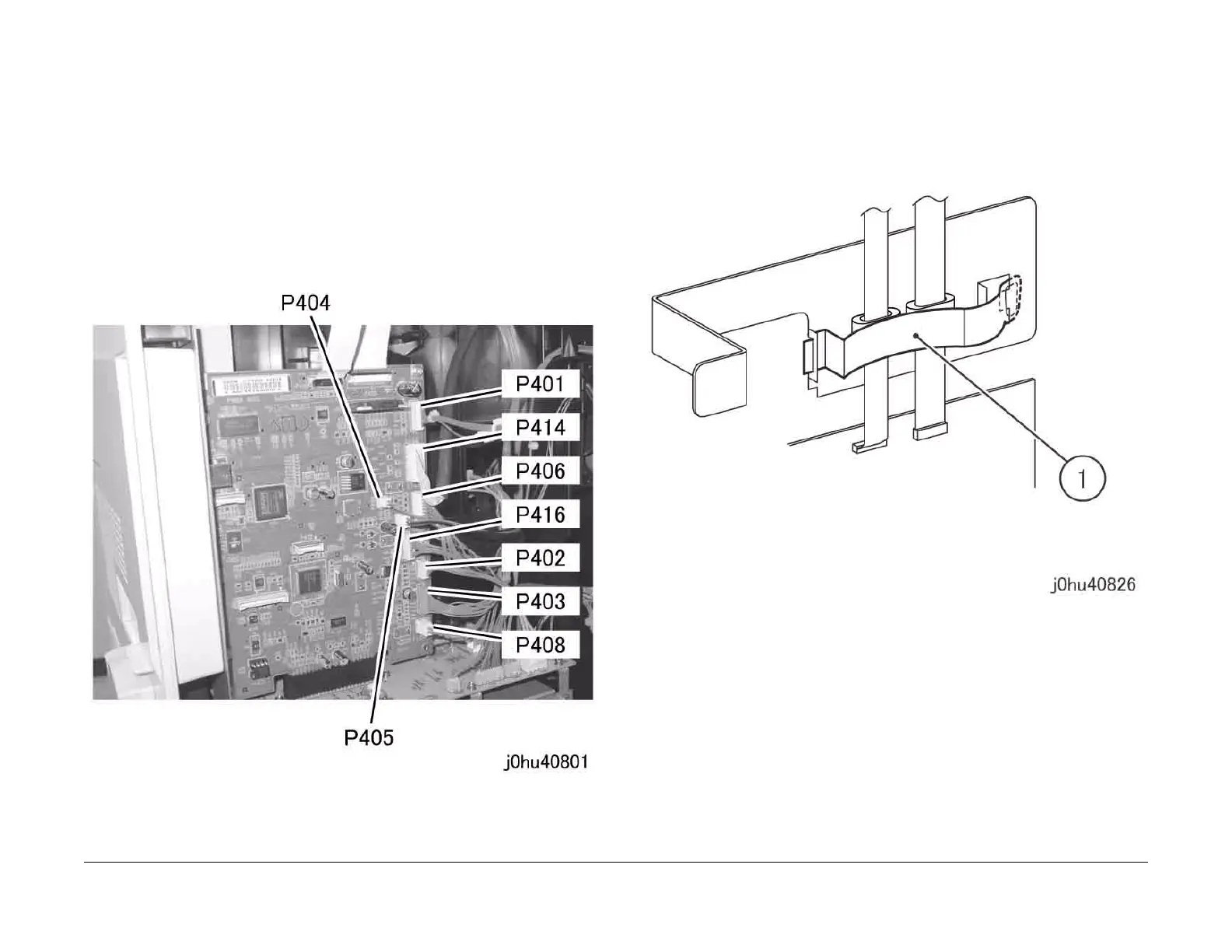

2. Disconnect the AIOC PWB connectors (9) (Figure 1).
Figure 1
3. Remove the Core Clip (Figure 2).
1 Remove the Core Clip.
Figure 2 Removing the Core Clip
