WorkCentre 5020
REP 8.1.1
Initial Issue
Repairs and Adjustments

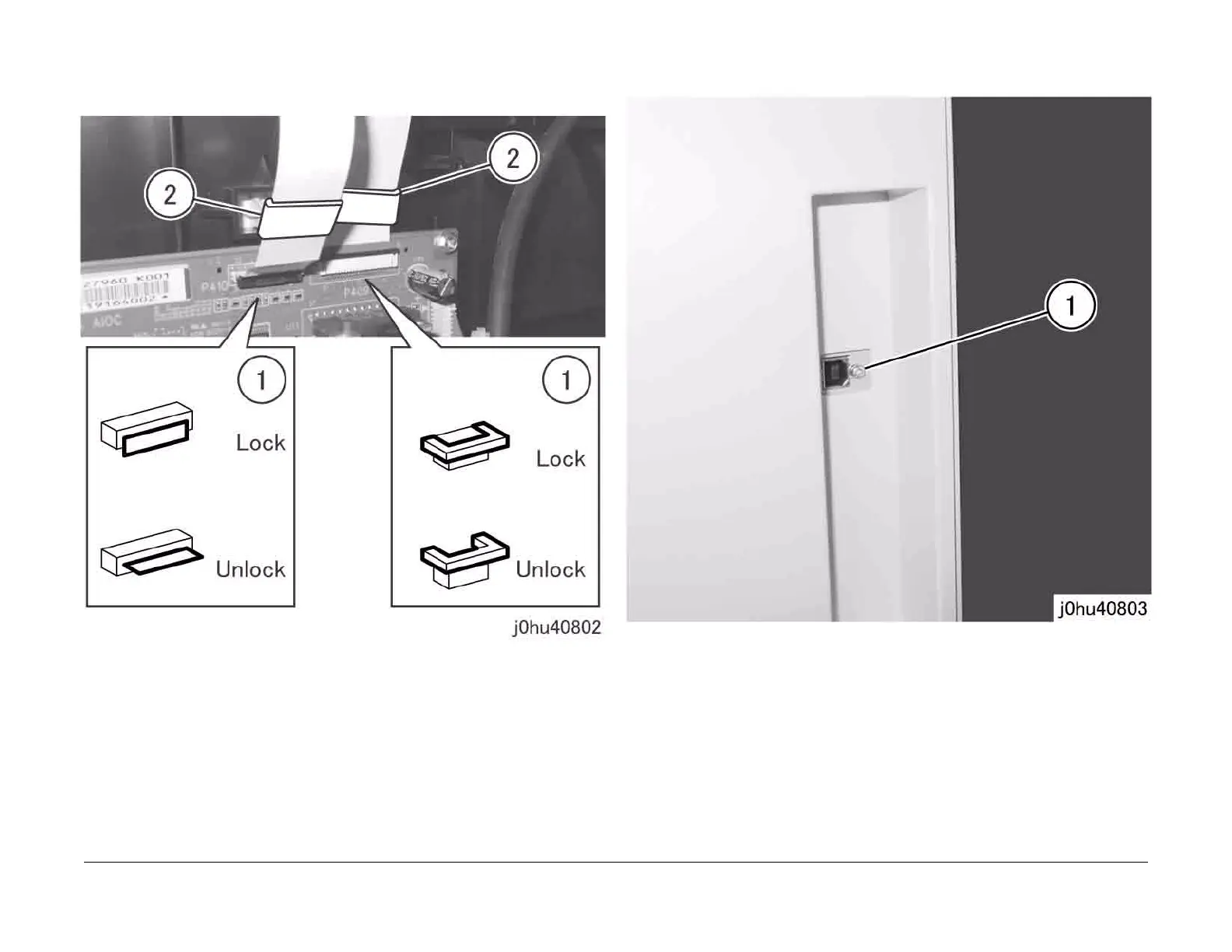

4. Disconnect the Flexible Print Cables (2) from the AIOC PWB (Figure 3).
1 Disconnect the Flexible Print Cables (2).
2 Remove the Cores (2).
Figure 3
5. Remove the screw of the USB connector (Figure 4).
1 Remove the screw.
Figure 4
