Xerox WorkCentre 5020 - REP 2.8.1 Registration (SCC)

July, 2007
4-13
WorkCentre 5020
REP 2.8.1
Repairs and Adjustments
Initial Issue
REP 2.8.1 Registration (SCC)
Parts List on PL 2.8
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Drum Cartridge (REP 4.1.1).
2. Remove the Rear Cover (REP 9.2.1).
3. Remove the Transfer Corotron Housing (REP 4.3.1).
4. Disconnect the connector (Figure 1).
1 Remove the screw to remove the Ground Wire.
2 Remove the screw to remove the Ground Wires (2).
3 Disconnect P/J 503.
4 Remove the wire harness from the hooks (2).
5 Remove the wire harness from the slots (2) in the frame.
6 Remove the wire harness from the guides (3).

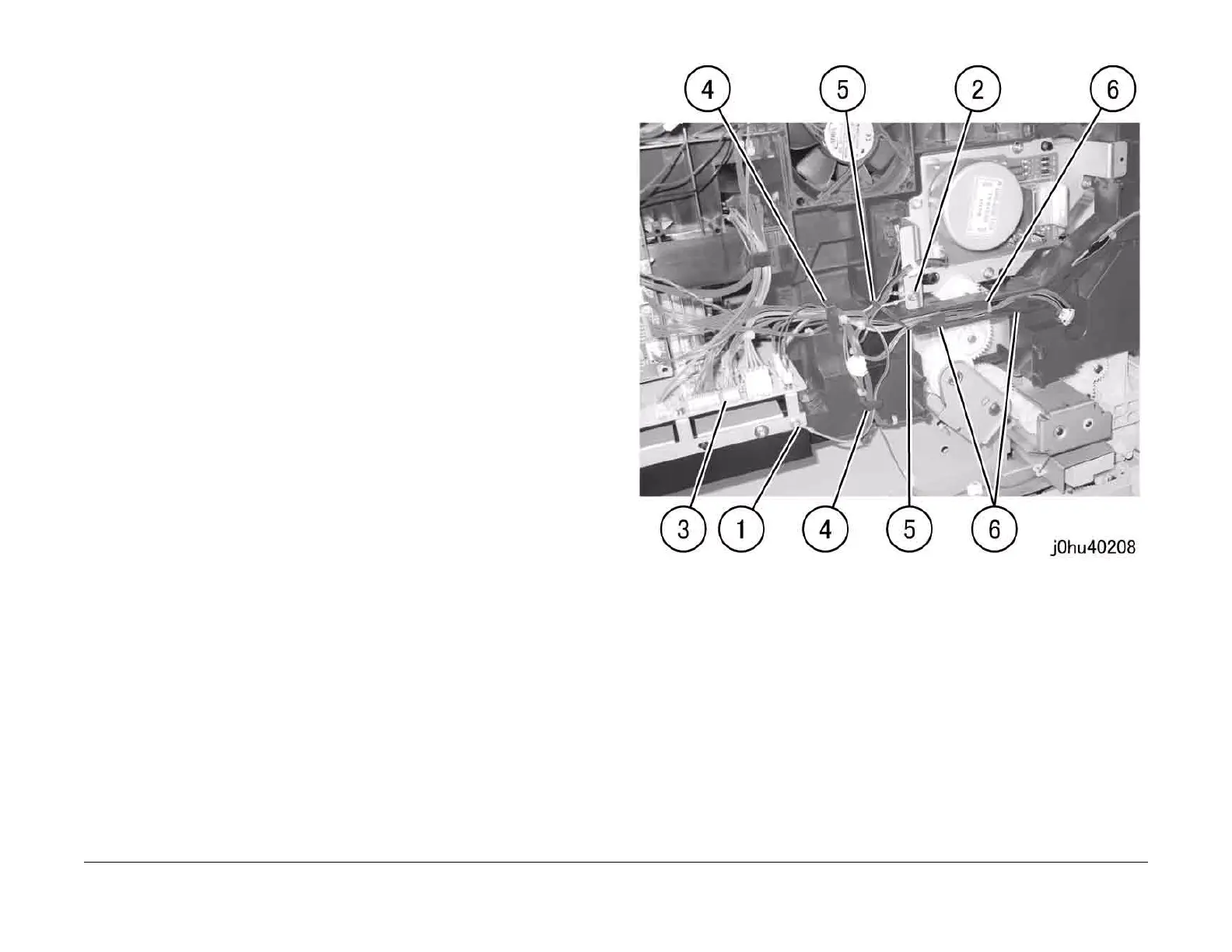

Figure 1
