WorkCentre 5020
REP 1.1.1
Repairs and Adjustments
Initial Issue
REP 1.1.1 IOT Motor (SCC)
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Drum Cartridge (REP 4.1.1).
2. Remove the Rear Cover (REP 9.2.1).

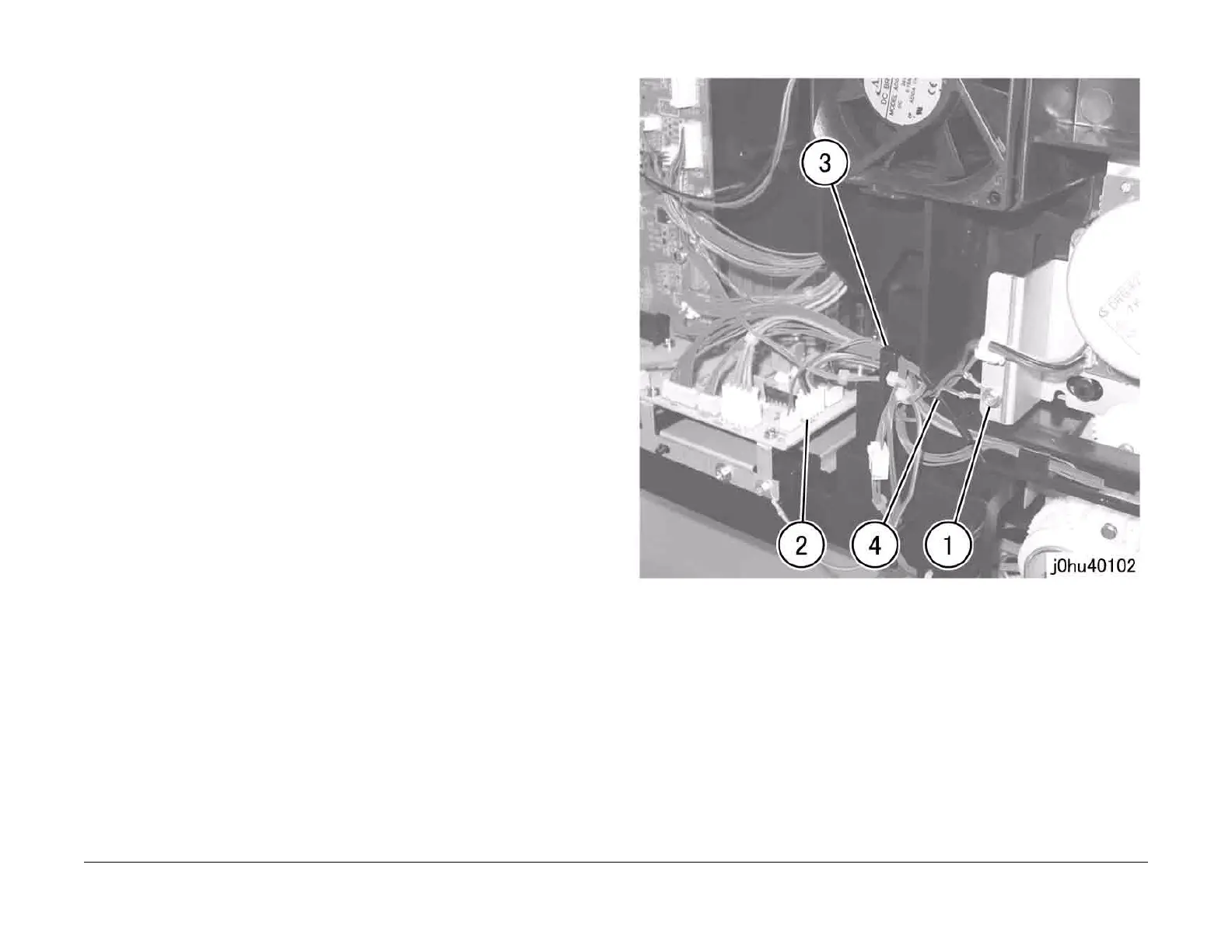

3. Disconnect the connector (Figure 1).
1 Remove the screw that secures the Ground Wires (2).
2 Disconnect P/J 504.
3 Release the wire harness of the IOT Motor from the hook.
4 Remove the wire harness of the IOT Motor from the slot in the frame.
Figure 1
To Next Page
