Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-29
WorkCentre 5020
PL 8.1
Parts List

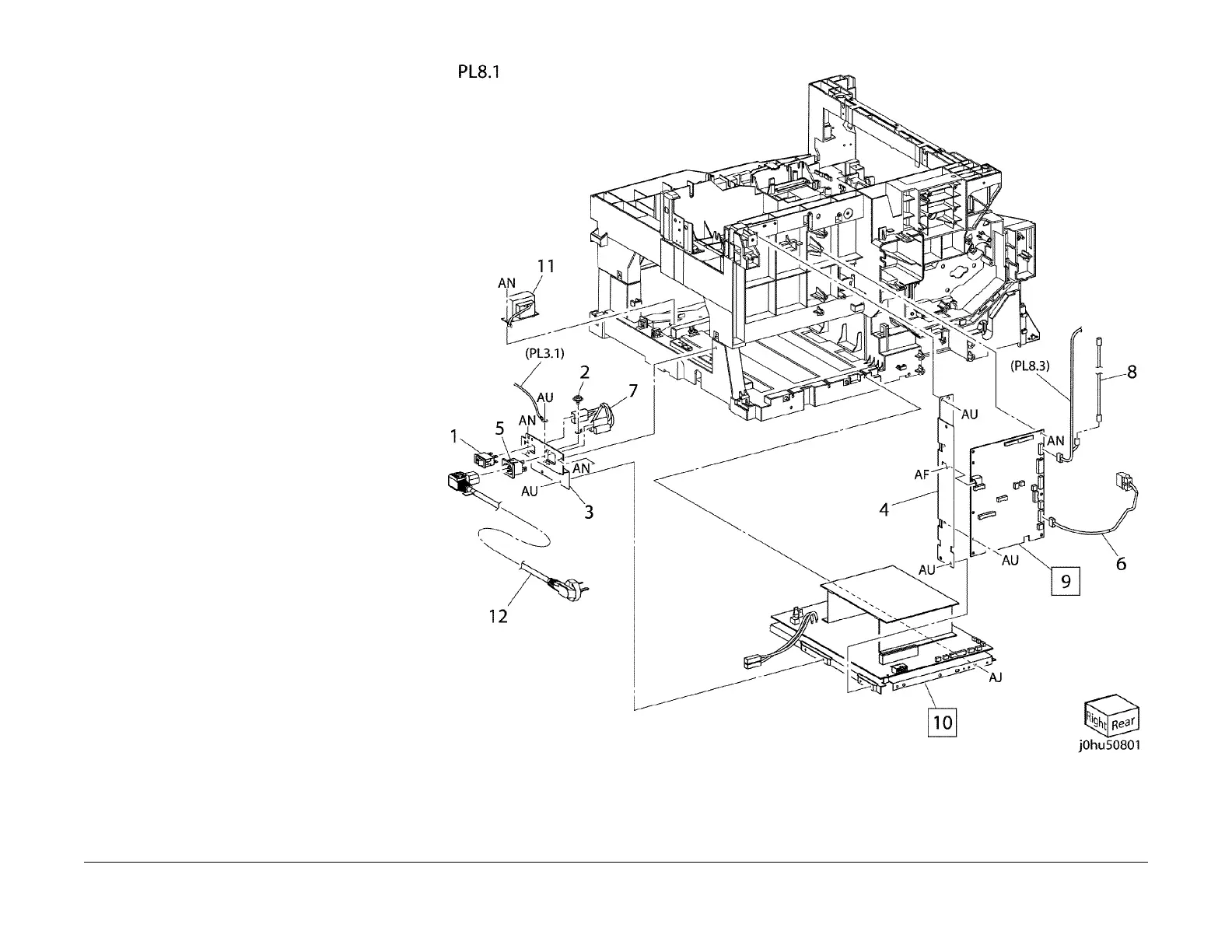

PL 8.1 AIOC PWB, LVPS, Power
Switch
Item Part Description
1 110E11320 Power Switch
2 – Screw (With Washer) (Not Spared)
3 – Inlet Bracket (Not Spared)
4 – PWB Bracket (Not Spared)
5 – Inlet (Not Spared)
6 – CRUM ID Harness (Not Spared)
7 – Inlet Wire Harness (Not Spared)
8 – Billing Counter Harness
9 960K31862 AIOC PWB (110V) (REP 8.1.1)
– 960K31863 AIOC PWB (220V) (REP 8.1.1)
10 105E17391 LVPS (220V) (REP 8.1.2)
– 105E17411 LVPS (110V)
11 – Choke Coil (Not Spared)
12 – Power Cord (Not Spared)
