07/26/2007
5-37
WorkCentre 5020
PL 10.3
Parts List

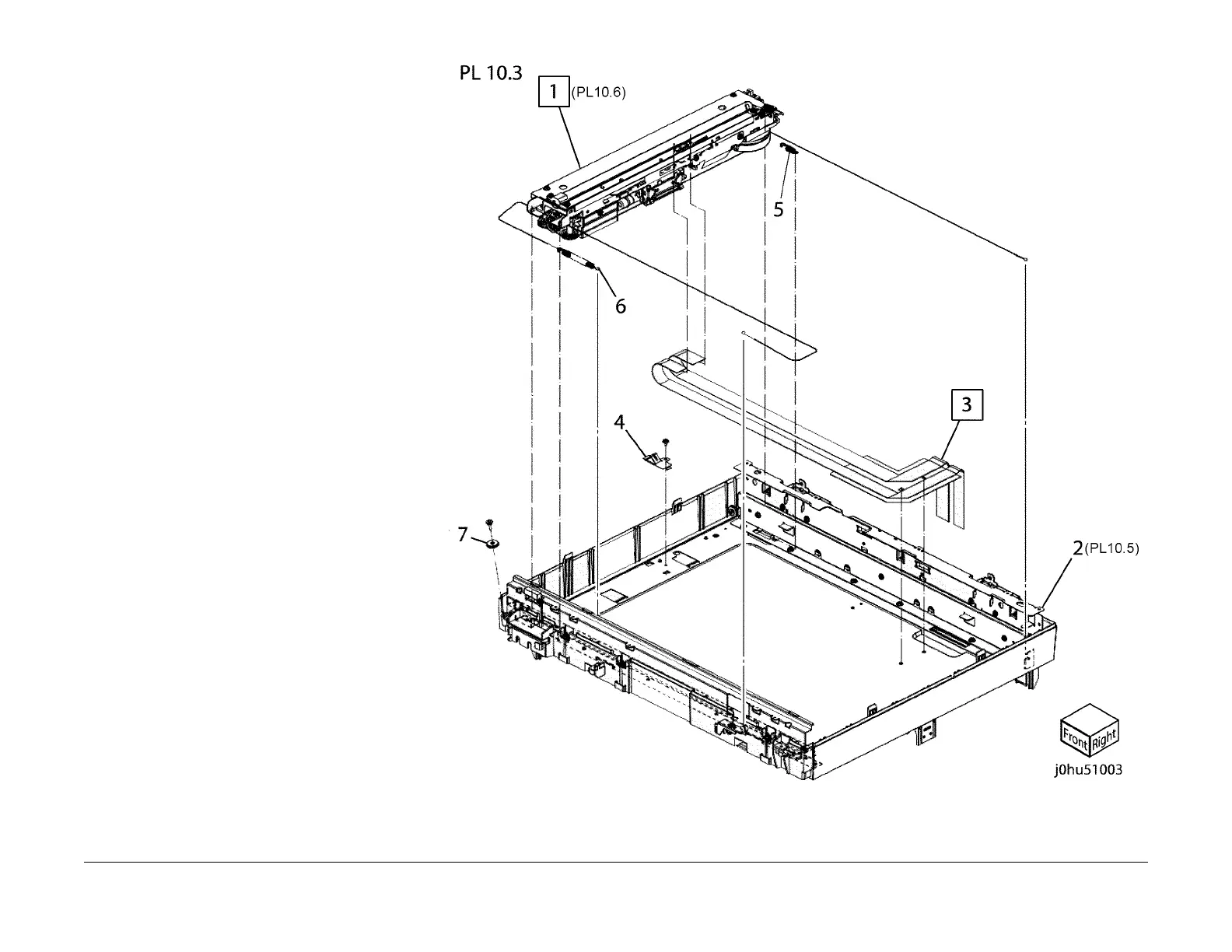

PL 10.3 IIT Component (2 OF 2)
Item Part Description
1 041K95870 IIT Carriage (REP 10.3.1)
2 IIT Under Cover (Not Spared)
3 962K59950 Flexible Print Cable (REP 10.3.2)
4 Plate Spring (Not Spared)
5 809E79910 Cable Spring (Rear)
6 809E79920 Cable Spring (Front)
7 Pulley (Not Spared)
