Xerox WorkCentre 5020 - Machine Maintenance Procedures; Replacing Consumables

July, 2007
4-38
WorkCentre 5020
REP 5.1.5
Initial Issue
Repairs and Adjustments
REP 5.1.5 Fuser Pressure Roll
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
WARNING
The Fuser and Exit Transport are hot. Do not work on them until they are cool enough.
CAUTION
Do not touch the glass part of the Fuser Lamp unless you are are wearing gloves.
1. Remove the Fuser Roll (REP 5.1.4).
2. Remove the Bushings (Figure 1).

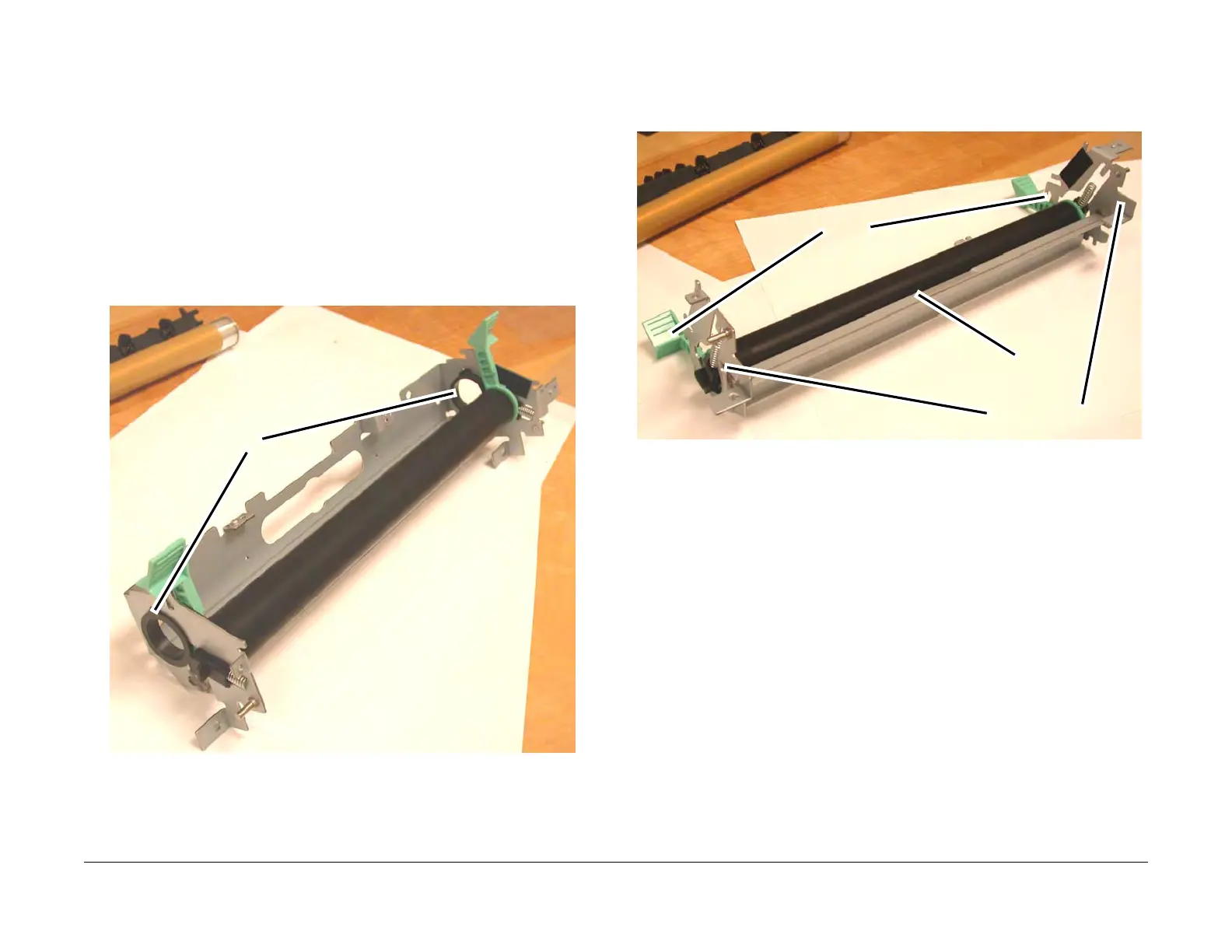

Figure 1 Removing the Bushings
3. Remove the Fuser Pressure Roll (Figure 2).
1 Remove the Levers.
2 Remove the Spring Mount Assemblies.
3 Remove the Fuser Pressure Roll.
Figure 2 Removing the Fuser Pressure Roll
Replacement
CAUTION
Do not touch the glass part of the Fuser Lamp unless you are wearing gloves.
NOTE: When installing the Fuser Roll, see REP 5.1.4.
1. To install, do the removal steps in reverse order.
Bushings
Levers
Spring Mount Assemblies
Fuser Pressure Roll
